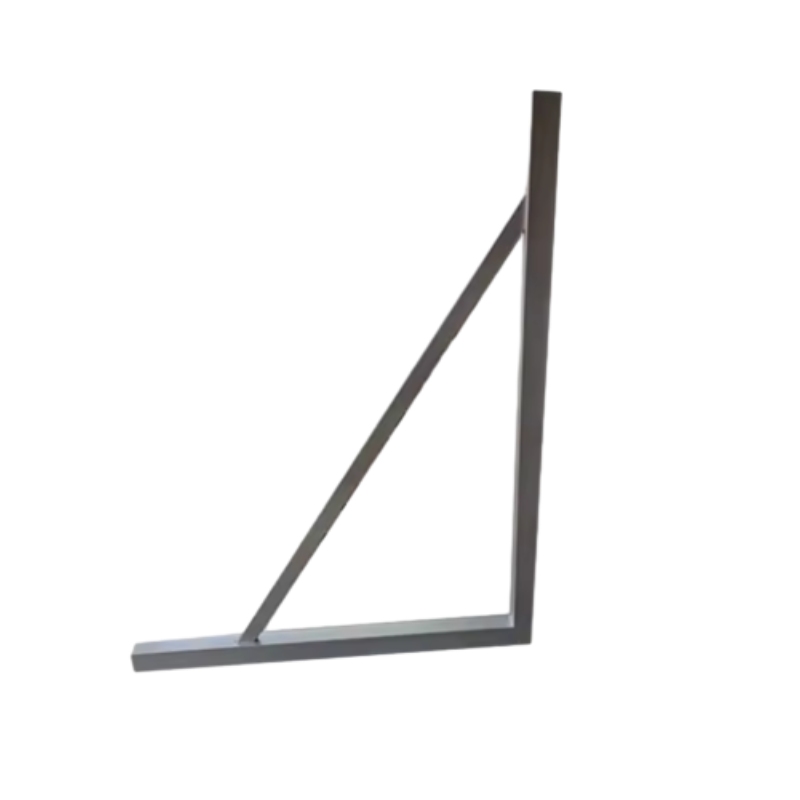

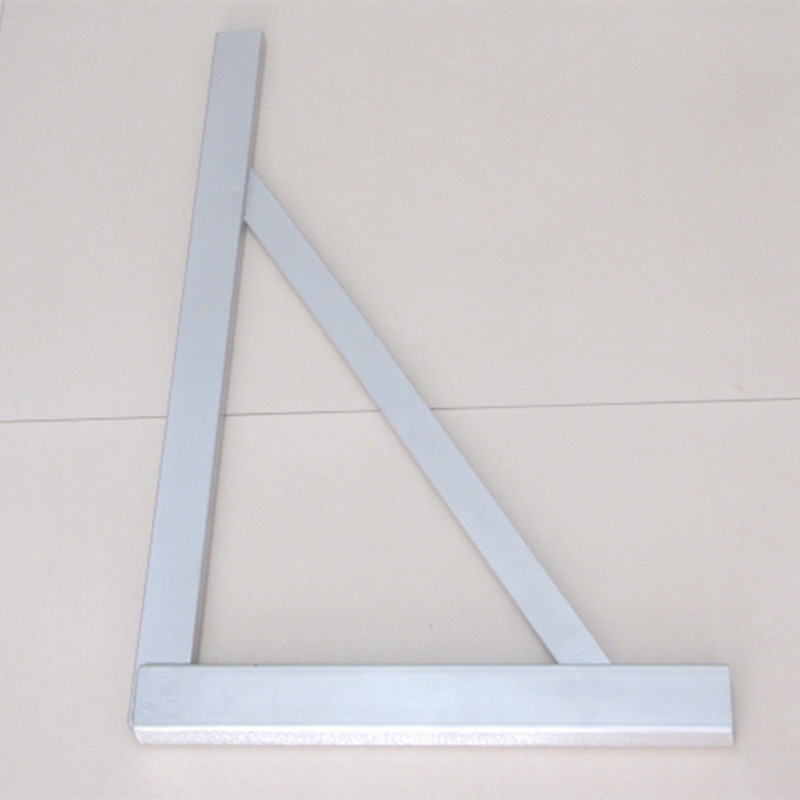

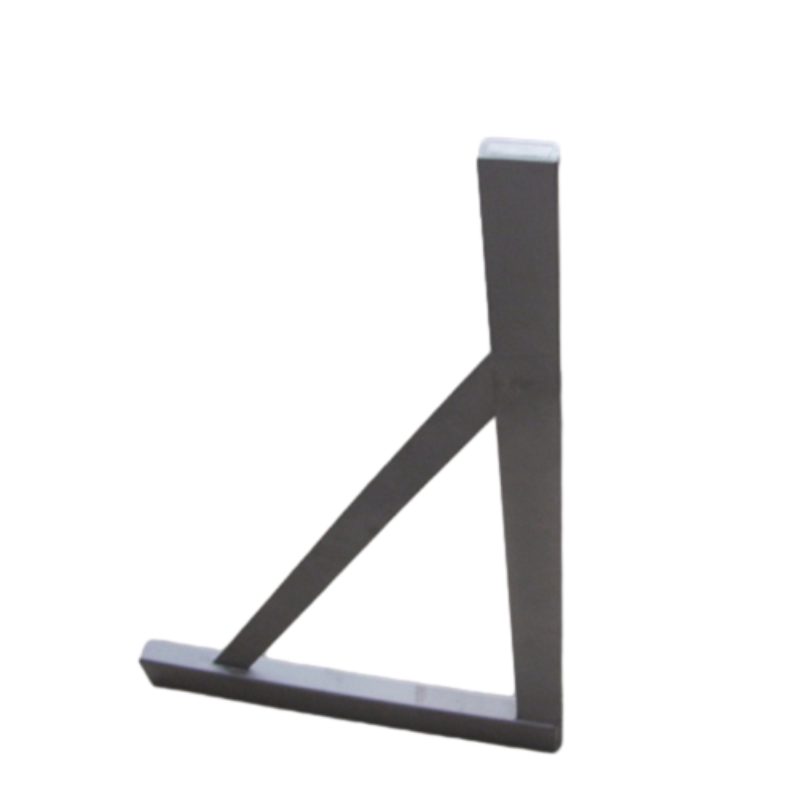

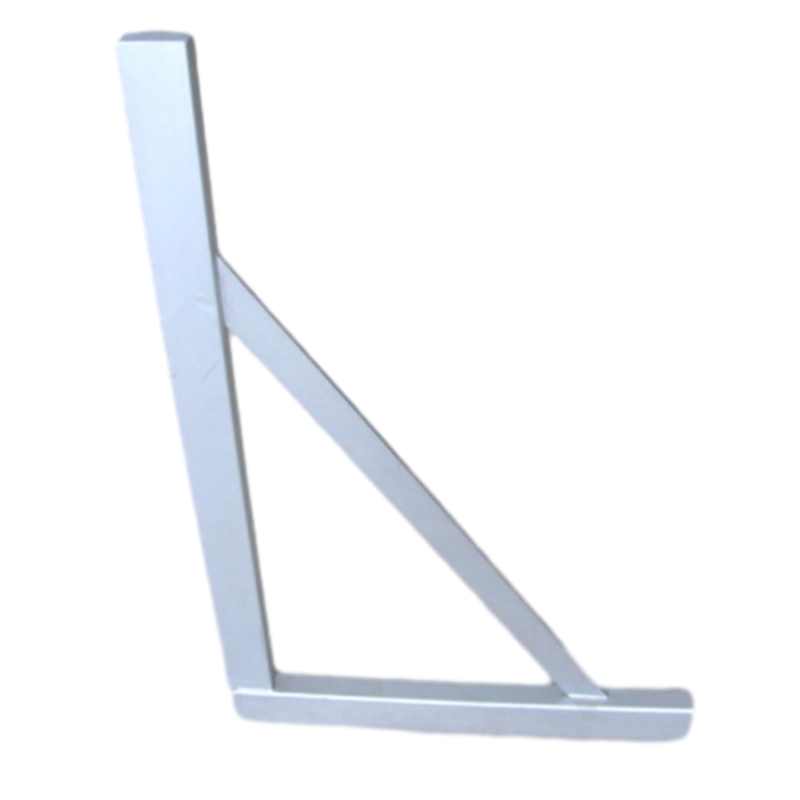

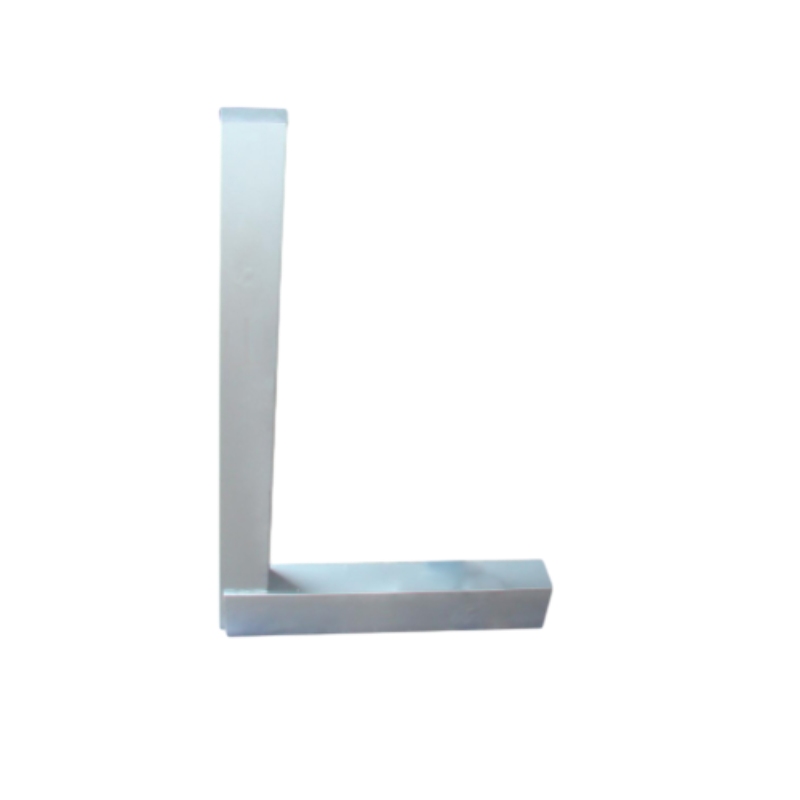

Dzogoe dzɔdzɔe ƒe dzidzenu .

Teƒe si wotso:Hebei

Mɔɖegbalẽ:Ƒe 1

Kpekpeɖeŋu si wowɔ ɖe ɖoɖo nu:OEM

Adzɔnu ƒe ŋkɔ:Storan

Kpɔɖeŋu xexlẽdzesi:3003

Nusiwo wotsɔ wɔe:Magnesium

Nu ƒe kpekpeme:4kg

Adzɔnu ƒe ŋkɔ:Magnesium-aluminium alloy kekeli gbadzaa dziɖula

Nusiwo wotsɔ wɔe:Magnesium-aluminium ƒe kpe xɔasi

Agbɔsɔsɔme:630 * 400mm

Package:Plywood Aɖaka

Ðaseɖigbalẽ:iso9001.

Dzeside: grade

Shipping:To Ƒu alo Yame

Nya vevi aɖe:Se si sɔ kple wo nɔewo

Precision:0 Grade 1Grade 2Grade .

Ɣeyiɣi si woatsɔ awɔ dɔe .

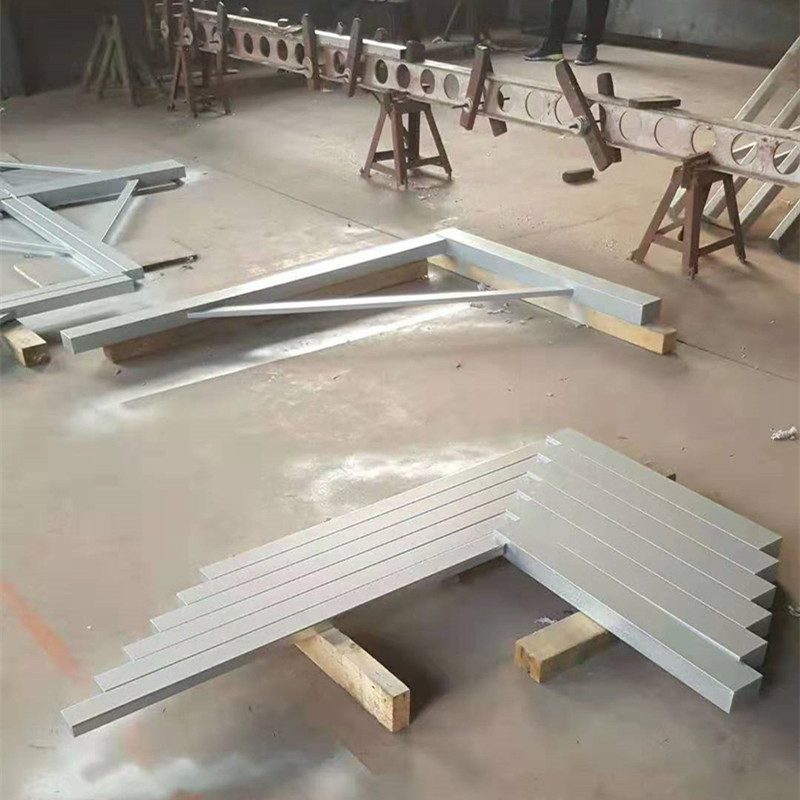

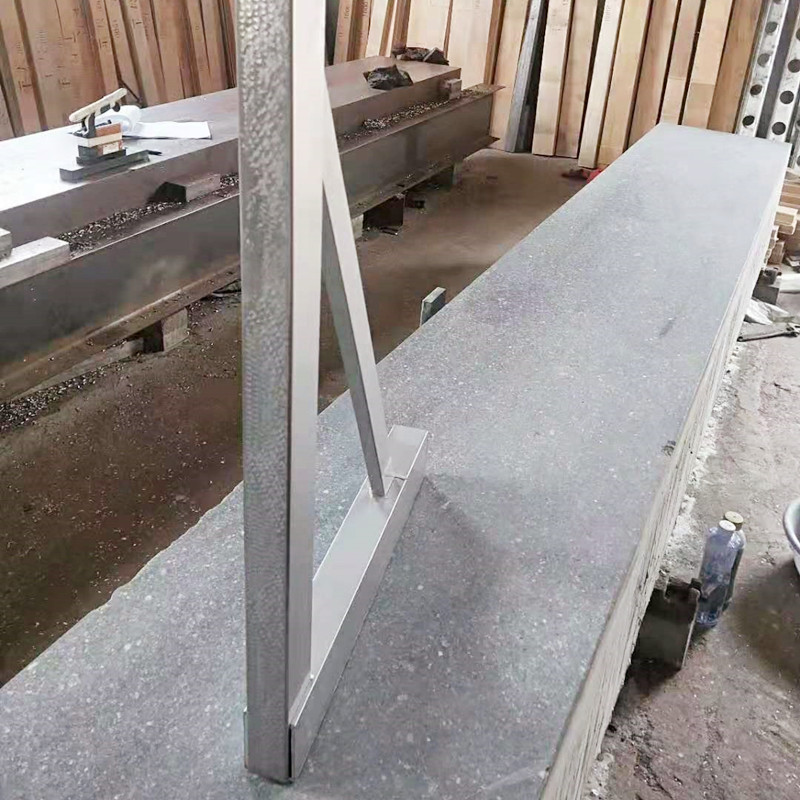

Magnalium keke zikpui ƒe dzogoedzidzenu 210 * 300mm .

Magnesium aluminum ɖusime dzogoedzidzenu ƒe dɔwɔwɔ .:

1. 1.Ŋutilã ƒe nɔnɔmewo: 47kg/mm2.
2. 2.Magnesium-aluminium ɖusime-dzogoe dziɖula ƒe didime: 17%
3. 3.Magnesium-aluminium ɖusime-dzogoe dziɖula bending point: 110kg/mm2.
4. 4.Vickers Ŋusẽ si le magnesium-aluminum ɖusime-dzogoe dzi dziɖula: HV80
5.

Viɖe siwo gbɔna le magnesium-aluminium ɖusime dziɖula ŋu .:

1. Kpekpeme si le bɔbɔe, si zazã le bɔbɔe eye eʋuʋu le bɔbɔe.
2. 2. Mele bɔbɔe be woawɔe o. Ga si wotsɔ wɔa nu bliboa ƒe bending point nye 30kg/mm2, eye esi le general cast iron me la nye 38kg/mm2. Nu sia ƒe bending point nye 110kg/mm2, eye bending resistance index la gbɔ nu bubuwo ŋu sasasã.
3. 3. Woate ŋu awɔ dɔ le bɔbɔe, woatɔ te ʋua ƒe ʋuʋu kple eƒe sɔsɔme evɔ makpɔ ŋusẽ ɖe eƒe dzɔdzɔenyenye kple eƒe sɔsɔ kple wo nɔewo dzi o le ɣeyiɣi didi ƒe sɔsɔme ta.
4. 4. Mele bɔbɔe be woaɖee afia o, mègazã ami le ezazã me o, mègazãe ɣeyiɣi didi o, ƒo ami si wozãna le dɔwɔƒewo katã ƒe akpa sue aɖe blewu ne wodzrae ɖo.

Dzogoe dzɔdzɔe dzidzenu ƒe dzesi siwo sɔ pɛpɛpɛ 0–2: verticality tolerance standards .

Le nuwɔwɔ pɛpɛpɛ me la, dzogoe nyuitɔ ƒe dzidzenu la wɔa dɔ abe alesi wòte ŋu léa tsitrenu ƒe mɔɖeɖe ɖe nu ŋu sesĩe me ɖe asi ene ko. Storaen ɖe dzesi etɔ̃ siwo sɔ pɛpɛpɛ (0, 1, 2) gɔme na míaƒe ga 90 degree dziɖulawo ƒe kuxiwo gbɔkpɔnu, siwo dometɔ ɖesiaɖe wowɔ be wòakpɔ dɔwɔƒewo ƒe didi tɔxɛwo gbɔ—tso yamenutomeyimɔ̃wo ƒe dzidzenu dzi va ɖo mɔ̃ɖaŋudɔwo katã dzi. Gɔmesese siawo gɔmesese kpɔa egbɔ be ètia dɔwɔnu nyuitɔ na wò verticality inspection hiahiãwo, si ISO 1101 kple GB/T 6092 ƒe sedziwɔwɔ le megbe na.

1. Grade 0: ultra-kɔkɔe ƒe nyateƒetoto (±2 .")

Sika ƒe Dzidzenu si woatsɔ awɔ dɔ veviwoe .:

Mɔɖeɖe ɖe nu ŋu: Eléa 90° ƒe tsitrenu ɖe asi le ±2 arcsecond (±0.0005mm/m), si woɖo kpe edzi to laser interferometry dzi.
Nusiwo wotsɔ wɔe: HT200 ƒe gayibɔ si wotsɔ ƒo ƒu (na ʋuʋudedi ƒe ʋuʋudedi) alo magnesium aluminum alloy (na rigidity si le bɔbɔe), wo ame evea siaa ɖe asi le -80°C ŋu be woaɖe nuteɖeamedzi siwo le ememe ƒe 95% ɖa.

Dɔwɔwɔwo .:

Yamenutome ƒe akpa aɖe dodokpɔ: Storaen 90 degree angle dziɖula (grade 0, 630x400mm) kpɔa egbɔ be jet engine brackets sɔ le ±0.001mm/m me, si xea mɔ na ɖeɖiteameŋu ƒe kpododonuwo tso misalignment.
CMM ƒe dzidzedzekpɔkpɔ: Ewɔa dɔ abe dzidzenu ƒe dzidzenu na coordinate dzidzedze mɔ̃wo, afisi sub-micron vodadawo ate ŋu agblẽ ɖaseɖigbalẽ ƒe nyatakakawo na atikewɔnuwo ƒe atikewo.

2. Klas 1: Dɔwɔƒewo ƒe nyateƒetoto (±5.")

Eda sɔ pɛpɛpɛ eye wòte ŋu wɔa nu geɖe le mɔ̃ɖaŋununya ƒe dɔ akpa gãtɔ me .:
Mɔɖeɖe ɖe nu ŋu: ±5 arcseconds (±0.0015mm/m), si sɔ nyuie na ISO 1101-sedede ƒe tsitrenu dodokpɔwo.
Aɖaŋu ƒe nɔnɔmewo: Wodo ŋusẽ akɔta le ga 90 degree dzidzenu kpɔɖeŋuwo (3000x2000mm) ma 200kg+ agbawo matrɔmatrɔ, esime 5μm anti-corrosion coating kpɔa ta tso fafanu ƒe ɖeɖefia me.

Dɔwɔwɔwo .:

Ʋu ƒe fixturing: storaen right angle dziɖula (grade 1, 1000x630mm) kpɔa egbɔ be mɔ̃a ƒe mɔxenuwo le tsitrenu na mating surfaces le ±0.01mm me, si ɖea assembly rework dzi kpɔtɔna 40%.
CNC mɔ̃ ƒe ɖoɖo: ɖoa kpe spindle verticality dzi le nutunu mɔ̃wo dzi, si nyona ɖe edzi le anyigba ƒe nuwuwu (RA ≤1.6μm) kple dɔwɔnu ƒe agbenɔƒe keke ɖe enu 25%.

3. Klas 2: taɖodzinu bliboa ƒe nyateƒetoto (±10 .")

Woate ŋu aka ɖe edzi na non-critical alignment kple layout dɔwo .:

Mɔɖeɖe ɖe nu ŋu: ±10 arcseconds (±0.003mm/m), si sɔ na GB/T 6092 Class 2 ƒe nudidiwo.
Nusiwo woate ŋu azã: Carbon gakpo si me ga mele o (na nuto siwo me wowɔa dɔ sesẽwo le) alo aluminum si me anodized le (na corrosion resistance in textile workshops), si ƒe kpekpeme nye 5kg ko na 1500x1000mm ƒe kpɔɖeŋuwo.

Dɔwɔwɔwo .:

Dɔwɔnu kpekpewo ƒe ƒuƒoƒo: Storaen Multi Angle Edge dziɖula (Grade 2, 2000x1500mm) léa ŋku ɖe bulldozer blade mounts ƒe tsitrenunyenye ŋu, si kpɔa egbɔ be woɖo 90° ɖe anyigba ƒe ʋuʋu nyuie ŋu.
Sheet Metal Fabrication: Guides 90° Bend Marks le 5mm-trick steel sheets dzi, si ɖea dodokpɔ kple vodada ƒe asitɔtrɔwo dzi kpɔtɔna 30% le enclosure wɔwɔ me.

4. Storaen ƒe kakaɖedzi si sɔ pɛpɛpɛ .

Calibration Traceability: Dzogoe nyuitɔ ƒe dzidzenu ɖesiaɖe si me CMM-wɔna ƒe ɖaseɖigbalẽ le, si woate ŋu akpɔ tso dukɔa ƒe dzidzenu ƒe dzidzenuwo gbɔ.
Dzesi siwo wowɔ ɖe ɖoɖo nu: Èhiã dzidzenu 0.5 dzidzenu na Aerospace Subcomponents ƒe akpa aɖewo? Míaƒe mɔ̃ɖaŋudɔwɔlawo trɔa asi le mɔɖeɖewo ŋu ɖe wò nɔnɔmewo nu, siwo wotsɔ yi le kwasiɖa 4–6 me.
Mɔɖegbalẽ: Ƒe 1 ƒe coverage ɖe verticality drift, zi gbɔ zi eve le dɔwɔƒea ƒe mamã dedie nu, si ana kakaɖedzi ɣeyiɣi didi le 40°C dɔwɔƒe ƒe dzoxɔxɔ gɔ̃ hã me.

Eɖanye be èhiã na grade 0 ƒe sub-micron ƒe nyateƒetoto na yamenutomeyimɔ̃ o, grade 1 ƒe dɔwɔwɔ si da sɔ na ʋu ƒe mɔ̃ɖaŋudɔwɔwɔ, alo kakaɖedzi si le grade 2 ŋu si me gazazã aɖeke mele o na dɔ siwo wowɔna le xexeame katã o, Storaen ƒe dzogoe dzɔdzɔe dzi dziɖula ƒe kuxiwo gbɔkpɔnu siwo woɖo pɛpɛpɛ la naa vertical control si ɖeke mesɔ kplii o. Tsɔe kpe ɖe dzogoe dzɔdzɔe ƒe didime ƒe kpeɖeŋutɔwo ŋu hena dzogoedzikpɔkpɔ bliboe, kple kakaɖedzi le míaƒe mɔ̃ɖaŋuŋutinunya ƒe nunya ŋu be wòaɖo dɔwɔƒewo ƒe dzidzenu sesẽtɔwo kekeake gbɔ—afisi wosɔ pɛpɛpɛ le.

Dzogoe dzɔdzɔe Dziɖula Nudzraɖoƒe Aɖaŋuɖoɖowo: Hanging vs. Horizontal Placement Best Practices .

Nudzraɖoƒe nyuie le vevie ŋutɔ be nàlé wò dzogoe nyuitɔ ƒe dzidzenu ƒe nyateƒetoto kple agbenɔƒe didi me ɖe asi. Storaen trɔa asi le eƒe dɔwɔnuwo ŋu—tso Metal 90 Degree Ruler ƒe kpɔɖeŋuwo dzi va ɖo multi angle edge ruler solutions siwo me nu kpekpewo le dzi—siwo ƒe aɖaŋuwo sɔ na nudzraɖoƒewo, gake nu nyuitɔ siawo dzi wɔwɔ nana wò gadede eme nɔa anyi pɛpɛpɛ ƒe geɖe. Ale si nàtiae nye be nàhe ɖe ati ŋu kple esi le tsia dzi le wò dɔwɔnu ƒe ƒomevi kple dɔwɔƒe ƒe hiahiãwo nu lae nye esi .:

1. Nudzraɖoƒe si wotsɔa atiwo ƒoa ƒui: si sɔ nyuie na dziɖula siwo ƒe kpekpeme le bɔbɔe & siwo le sue va ɖo titina .

Anyo na 90 degree dzogoe dzidzenu kpɔɖeŋuwo ≤1500x1000mm (le kpɔɖeŋu me, magnesium aluminum alo anodized aluminum .):

Nusita wòwɔa dɔ:Hanging ɖea nuheŋusẽ ƒe nuteɖeamedzi ɖa le dziɖula ƒe goawo dzi, si xea mɔ na ʋuʋudedi sue si ate ŋu adzɔ ne wodzrae ɖo ɖe anyigba. Storaen ƒe ga 90 degree dzidzenu (5kg na 1000x630mm) features do ŋusẽ do siwo wotsɔ he (20mm ƒe didime, countersunk be woakpɔ goawo ta) hena dedienɔnɔ.

Ale Si Nàwɔe .:

Zã kɔsɔkɔsɔ siwo tsi tre ɖe ʋuʋudedi ŋu (siwo me Storaen dziɖulawo le) nàtsɔ atsɔ dɔwɔnua atɔ ɖe agbatsɔkeke si wotu ɖe gli ŋu dzi le tsitrenu, akpɔ egbɔ be 90° ƒe nugbɔ dze anyi ɖe anyime be ke nagaƒo ƒu o.
Gblẽ 50mm ƒe ʋuʋu ɖe dziɖulawo dome be nàxe mɔ ɖe afɔku siwo dzɔ le vo me nu—vevietɔ na ±2" ƒe nyateƒetoto si le Grade 0 ƒe dzogoe dzɔdzɔe dzidzenu ƒe kpɔɖeŋuwo me.

Best for: Dɔwɔƒe ƒe nɔnɔme siwo me anyigba ƒe teƒe si seɖoƒe mele o, alo ne wole dziɖula siwo sɔ kple wo nɔewo siwo le dzogoe dzɔdzɔe dzi dzram ɖo siwo hiã be woate ŋu akpɔ wo kaba hafi woate ŋu alé ŋku ɖe wo ŋu enuenu.

2. Horizontal Placement: Wokafui na Heavy-Duty & Large dziɖulawo .

Ideal na gayibɔ multi dzogoe nugbɔ dzidzenu kpɔɖeŋuwo ≥2000x1500mm (le kpɔɖeŋu me, HT200 gayibɔ, 180hb sesẽ):

Nusita wòwɔa dɔ:Nudzraɖoƒe si le tsia dzi la maa kpekpeme sɔsɔe ɖe dziɖula ƒe gɔmeɖoanyia dzi, eye wòwɔa Storaen ƒe nuteɖeamedzi ƒe nɔnɔme (550°C annealing na gaƒoƒo 4) be wòalé didime ƒe liƒo me ɖe asi. 3000x2000mm dziɖula si wodo alɔe le teƒe etɔ̃ (Ends + Center) kpɔa 70% le sue wu esiwo womedo alɔ o.

Ale Si Nàwɔe .:

Zã foam-lined shelves (10mm ƒe titrime, anti-static) nàtsɔ adzi dziɖula ƒe kadodo ƒe anyigbawo ɖe dzi, akpɔ asi-wo ƒe nuwuwu (RA ≤1.6μm) ƒe dzogoe dzɔdzɔe dziɖula ƒe kpɔɖeŋuwo ta.
Dzrae ɖo ɖe teƒe siwo dzoxɔxɔ le (20°C ±2°C) be dzoxɔxɔ ƒe kekeɖenudɔwɔwɔ dzi naɖe akpɔtɔ—vevietɔ vevie na magnesium aluminum dziɖulawo, siwo léa 110kg/mm2 ƒe ŋusẽ gɔ̃ hã ɖe dzoxɔxɔ 40°C me ne wodo wo ɖe ŋgɔ nyuie.

Best for:Large-scale workshop setups alo ne wole dziɖulawo dzram ɖo ɖe right angle protractor accessories ŋu, si akpɔ egbɔ be wowɔ ɖoɖo ɖe wo nɔewo ŋu bɔbɔe na dzogoedzimɔ̃ siwo me kɔ nyuie.

3. Xexeame katã ƒe nuwɔna nyuitɔwo kekeake na dziɖula ƒomeviwo katã .

Dzadzɛ hafi nàdzrae ɖo: Tsɔe tutu kple Storaen tɔawo dometɔ aɖewoe nye ami si tsi tre ɖe anyigbaʋuʋu ŋu (5μm pickling oil coating) be woatsɔ akpɔ ame ta tso fafanu ƒe nugbagbeviwo si me—si nye nu vevi aɖe na aluminum 90 degree angle dziɖula ƒe kpɔɖeŋuwo ƒe xɔxlɔ̃ le ƒudzi alo tsi me.
Ƒo asa na ƒoƒo ɖe wo nɔewo dzi: Mègaƒo dziɖulawo nu ƒu ɖe tsitrenu gbeɖe o, elabena nyaƒoɖeamenu 5kg gɔ̃ hã ate ŋu agblẽ dɔwɔnu siwo ŋu nuteɖeamedzi mele o ƒe 90° ƒe nugbɔ—Storaen ƒe grade 1 metal 90 degree dziɖula tsi tre ɖe deformation ma tɔgbe ŋu gake egaɖea vi tso ɖeka-layer storage me kokoko.
Label eme kɔ nyuie: De dzesi nudzraɖoƒewo kple grade (0/1/2) kple nusiwo wotsɔ wɔa dɔe ƒe ƒomevi si sɔ pɛpɛpɛ be nàtsɔ awɔ dɔwɔnu tiatia kabakaba, vevietɔ ne èle multi angle edge ruler ƒe vovototowo zãm na dɔ tɔxɛwo abe CNC machine verticality calibration ene.

4. Storaen ƒe nudzraɖoƒe si wodo ŋusẽe ƒe nɔnɔmewo .

Do ŋusẽdoame: dziɖulawo katã ≥1000mm lɔ gakpo-siwo wodo ŋusẽe ɖe ati ŋu, wodoe kpɔ be woado alɔ dɔwɔnua ƒe kpekpeme matrɔmatrɔe—si sɔ na teƒe yeye ɖoɖo enuenu le yamenutome ƒe akpa aɖewo me dzodzro me.
Anti-slip feet (na horizontal use): Ga si wotsɔ gayibɔ wɔe ƒe kpɔɖeŋuwo ƒe nuwuwu ƒe nuwuƒe siwo wotsɔ goma wɔe siwo léa agbalẽdzraɖoƒewo nyuie, si xea mɔ na slide siwo ate ŋu agblẽ nu le dziɖula ƒe dzidzenu ƒe nugbɔ le dɔwɔnu kpekpewo ƒe ƒuƒoƒo ƒe dɔwo me.
Nudzraɖoƒe ƒe kuxiwo gbɔ kpɔnu siwo wowɔ ɖe ɖoɖo nu: Èhiã na wò dzogoe si dzi nètsɔa nu le le dzogoe dzɔdzɔe dzi kple Multi Angle Edge Ruler Set? Míaƒe ƒuƒoƒoa wɔa ɖoɖo ɖe bespoke racks kple foam inserts, si wotsɔ yi le kwasiɖa 4–6 me hena ƒoƒo ɖekae le wò dɔwɔwɔ ƒe ɖoɖoa me.

Eɖanye be ètsɔ dzogoedzidzenu si ƒe lolome nye 90 si ƒe kpekpeme le bɔbɔe la ƒo ɖe edzi be nàte ŋu age ɖe eme kaba alo adzra dzogoe dzɔdzɔe ƒe dzidzenu si le dɔ sesẽ wɔm ɖo ɖe tsia dzi be wòali ke nyuie wu o, nuwɔna siawo dzi wɔwɔ kpɔa egbɔ be wò Storaen dɔwɔnua nɔa anyi pɛpɛpɛ eye wònɔa klalo na zazã. Míaƒe aɖaŋu siwo wodo ɖe ŋgɔ—tso do siwo ŋu wodo ŋusẽe dzi va ɖo nusiwo ŋu nuteɖeamedzi le dzi—kpe ɖe beléle na wo nyuie ŋu, si na wò dɔwɔnu siwo sɔ pɛpɛpɛ ƒe agbenɔƒe didi ɖe edzi eye nàkpɔ wò gadede nyonyome me ta. Fia smart, dzidze aɖaŋutɔe wu kple Storaen.
