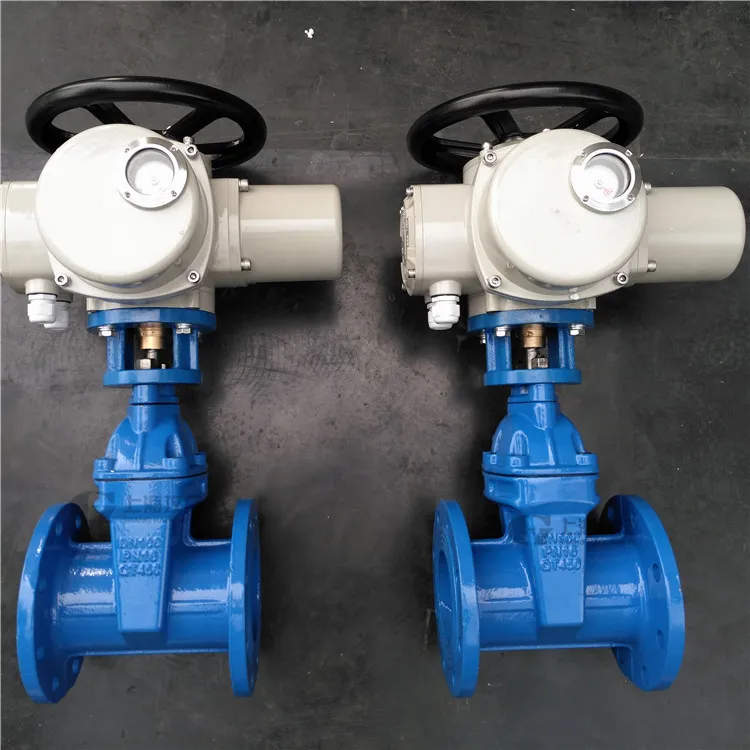

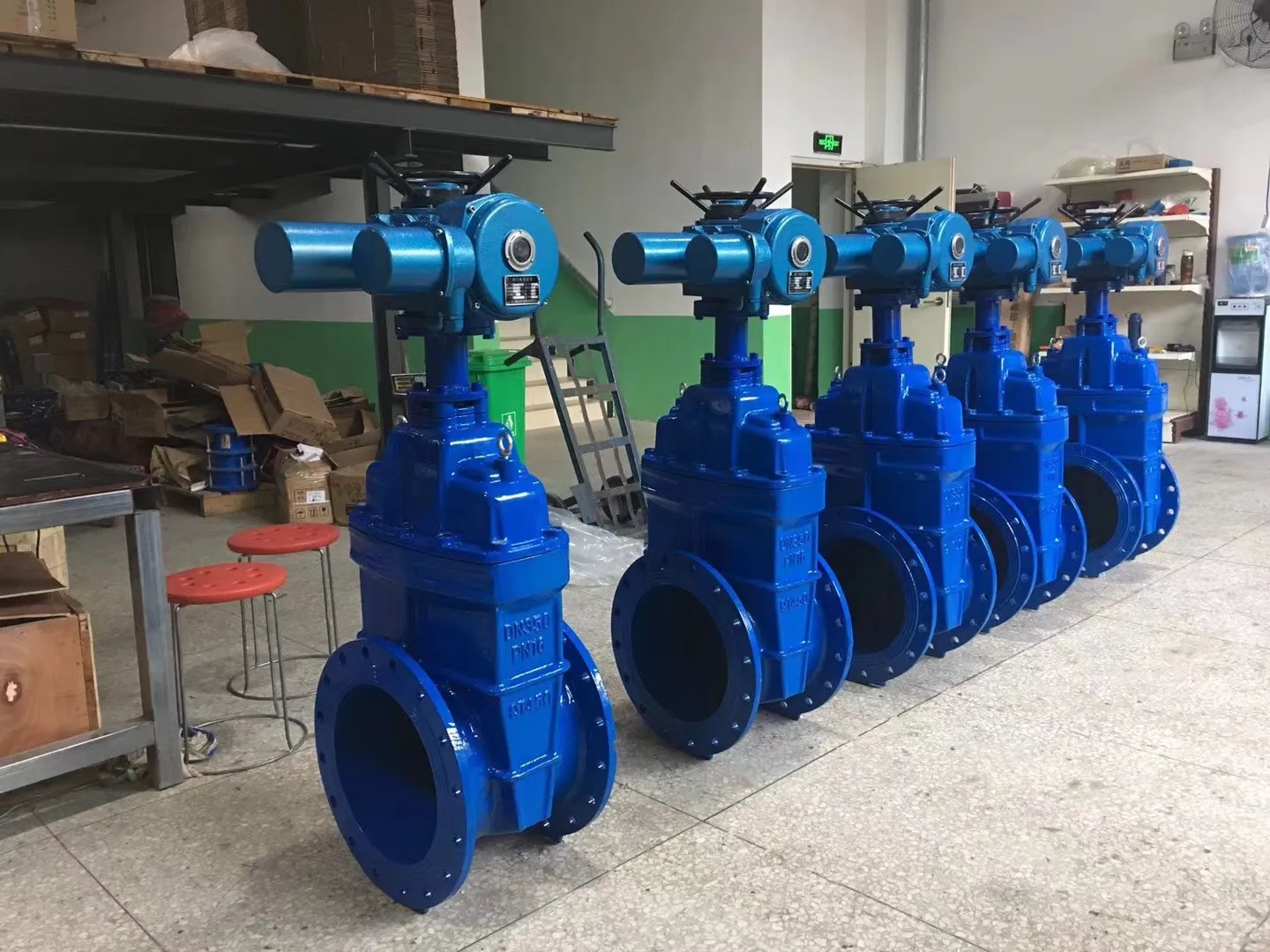

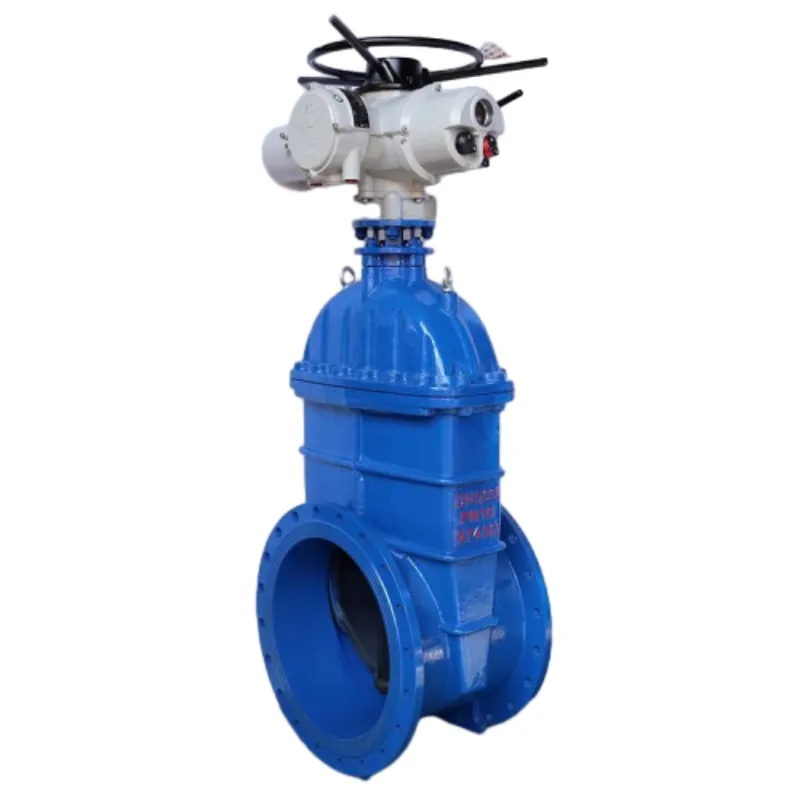

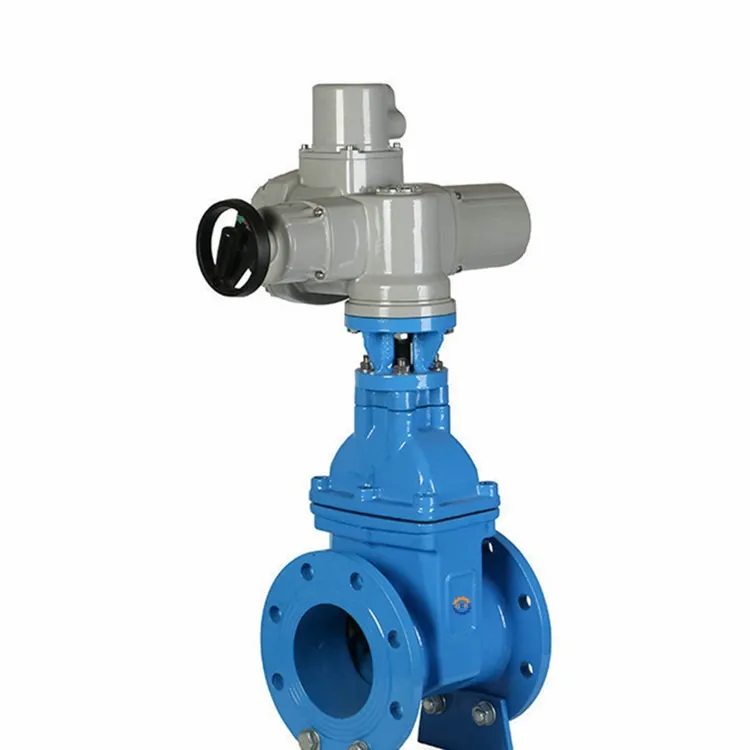

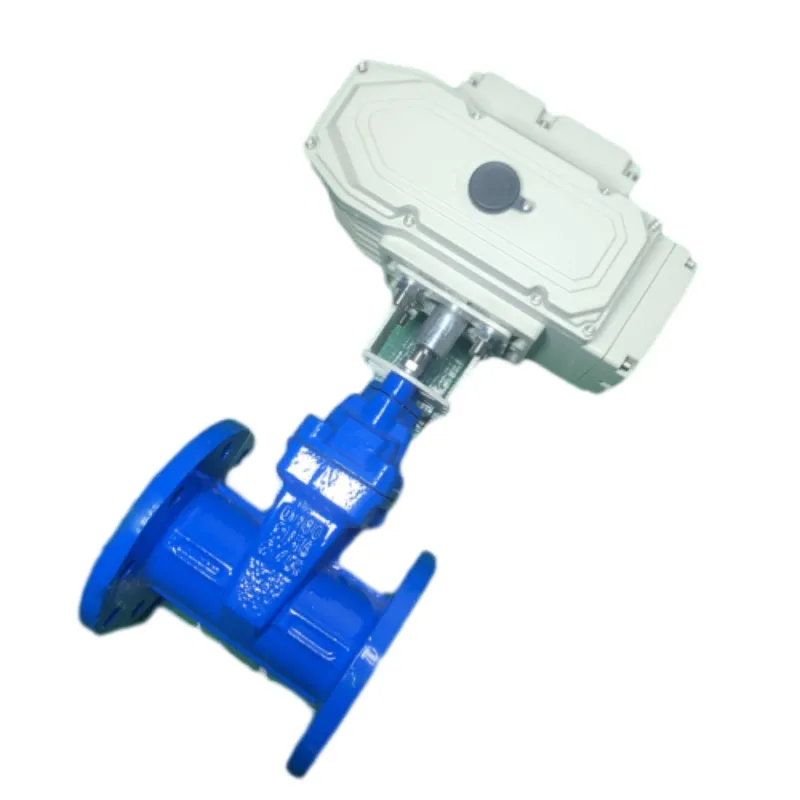

Elektrik falɛfalɛ nutrenu agbo valve .

Name: Elektrik hɛ ƒe agbo ƒe ʋuƒo ƒomevi vovovowo na tsizazã na dzadzra .
Brand: Ga valve dzidzenu dɔwɔnu cast gavi welding kplɔ̃ plug gauge wɔla .
Availability: InStock
Rating: 4.5 (89 reviews)

Elektrik-mɔ̃ si wotsɔ nutrenu si wofae ƒe ʋuƒo si wotsɔ blae falɛfalɛ la ƒe wɔwɔme si wotu ɖe etame la ɖea ʋuƒoa ƒe ŋutilã ƒe kadodo ƒe gaviwo dzi kpɔtɔna, enaa valvɔa ƒe kakaɖedzi dzina ɖe edzi eye ate ŋu aɖu ɖoɖoa ƒe kpekpeme ƒe ŋusẽkpɔɖeamedzi ɖe ʋuƒoa ƒe dɔwɔwɔ nyuie dzi dzi. Eɖua agbonudzɔmɔ̃ bliboa ƒe nɔnɔme madeamedziwo abe nutrenu gbegblẽ, ɖeɖiteameŋu si te ŋu trɔna bɔbɔe kple xɔxlɔ̃ bɔbɔe ene dzi. Ezãa fexexe ƒe ŋusẽkpɔɖeamedzi si le elastic gate plate la ŋu tsɔ wɔa deformation sue aɖe be woakpɔ nutrenu ƒe ŋusẽkpɔɖeamedzi nyui aɖe. Viɖe siwo dze ƒã le eŋu le kekeli ƒe tɔtrɔ, nutrenu si ŋu kakaɖedzi le, ŋkuɖodzinu nyui si woate ŋu atsɔ aɖo ŋku nu dzi kple subɔsubɔ ƒe agbenɔƒe didi.

CONTACT NOW PDF Download

Details

Tags

Elektrik falɛfalɛ nutrenu agbo valve .

【Dɔwɔwɔ ƒe dzoxɔxɔ】0〞80 .℃

【sɔ gbɔmetɔe】tsi, dzoxɔxɔ, ami, kple bubuawo

【Application】Elektrikŋusẽ, Xɔtuɖaŋu, Nutome Takpɔkpɔ, Tsi Dzadzraɖo, Tsi Kple Tsiɖɔɖɔ, etc

Adzɔnuwo ƒe viɖewo .

1.QT450-10 Ductile iron ŋutilã, 3 ƒe agbɔsɔsɔme spheroidization rate, tensile ƒe ŋusẽ nye 450mpa, kekeɖenudɔwɔwɔ ƒe agbɔsɔsɔme wu 10%. Mele bɔbɔe be woagbãe ahade tsikpe gbagbã me o.

2. Epoxy coating na valve le eme kple egodo siaa. 250μm ƒe nutsyɔnu ƒe titrime si wu 250μm. xea mɔ na valvɔa ƒe ŋutilã ƒe xɔxlɔ̃ kple gbeɖuɖɔ. Woate ŋu azãe le tsiɖɔɖɔɖɔɖoɖo me.

3. 50% rababa ƒe agbɔsɔsɔ EPDM coated di wedge. Wotsɔa wedge ƒoa rababa la sesĩe, si mele bɔbɔe be woadze o.

4. 2CR13 valvɔ ƒe lãkusi. Etɔ̃ O-ring nutrenu ƒe nɔnɔme. Ðe ʋuʋudedi ƒe tsitretsitsi dzi kpɔtɔ ne èle tɔtrɔm, ƒo asa na nusiwo le titina.

5. Brass Stem Nut kple Positioning Device, trɔ asi le eŋu nyuie wu eye wòƒoa asa na jamming le dɔwɔwɔ me.

6. IP65 takpɔkpɔ ƒe dzidzenu elektrik-nuwɔnu .

Parameter nyatakaka .

Xlẽ nu geɖe tso Gate Valve ƒomeviwo ŋu

Ŋkɔ	Aɖaŋuwɔwɔ kple ewɔwɔ .	Face to face didime .	Nyaƒoɖeamenu dodokpɔ .	Top flange .
Nufiame ƒe dzidzenu .	CJ/T 216 . . ANSI C515 .	GB/T 12221 . ASME B16.10.	CJ/T 216 . . API 598 .	GB/T 17241.6. ASME B16.1.

Ŋkɔ	1-Body	2-Wedge	3-Stem	4-elektrik-nuwɔnu .
Nu	DI	DI+EPDM .	2Cr13	Kpeɖeŋutɔ .

Ŋkɔ ƒe lolome .			PN16		150LB

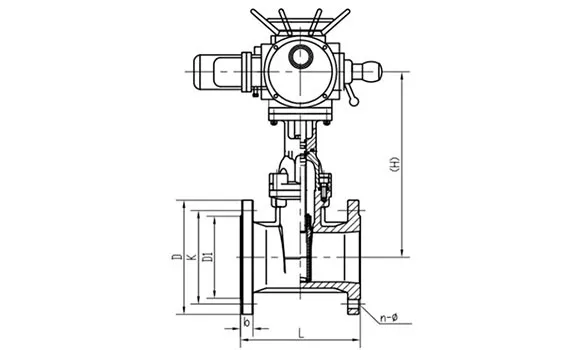

DN .	NPs(inches) .	L	K	N-φ .	K	N-φ .
50	2”	178	125	4-19	120.7	4-19
65	2 1/2”	190	145	4-19	139.7	4-19
80	3”	203	160	8-19	152.4	4-19
100	4”	229	180	8-19	190.5	8-19
125	5”	254	210	8-19	215.9	8-22
150	6”	267	240	8-23	241.3	8-22
200	8”	292	295	12-23	298.5	8-22
250	10”	330	355	12-26	362	12-25
300	12”	356	410	12-26	431.8	12-25
350	14”	381	470	16-26	476.3	12-29
400	16”	406	525	16-30	539.8	16-29
450	18”	432	585	20-30	577.9	16-32
500	20”	457	650	20-34	635	20-32
600	24”	508	770	20-37	749.3	20-35
700	28”	610	840	24-37
800	32”	660	950	24-40
900	36”	711	1050	28-40
1000	40”	811	1170	28-43
1200	48”	1015	1390	32-49
