Kpakpaluʋui ƒe ʋuƒo siwo wotsɔna ƒoa ʋuƒoe .

Centerline butt-clamp soft seal butterfly valve, eve eccentric flanged kpakpaluʋui valve compact structure, 90 ° rotary switch bɔbɔe, kakaɖedzi nutrenu, subɔsubɔ agbenɔƒe didi, wozãa geɖe le tsifamɔ̃wo, elektrik dɔwɔƒewo, gakpowɔƒewo, pepa wɔwɔ, catering kple tsi nana ƒe ɖoɖo bubuwo.

Kpakpaluʋui ƒe ʋuƒo, si woyɔna be kpakpaluʋui ƒe ʋuƒo (Butterfly valve), fia nutsotso ƒe akpa (valve flap alo kpakpaluʋui plate) na disk la, si trɔna ƒoa xlã valve axis la be wòaɖo ʋuƒo ƒomevi aɖe ƒe ʋuʋu kple eƒe nuwuwu gbɔ, le pɔmpia me koŋ wozãna hena lãɖeɖe kple etutu. Kpakpaluʋui ƒe ʋuƒo ƒe ʋuʋu kple nutsotso ƒe akpa nye kpakpaluʋui ƒe agbalẽvi si le abe disk ene, si trɔna ƒoa xlã eya ŋutɔ ƒe axis le valvɔa ƒe ŋutilã me, ale be wòaɖo taɖodzinu si nye be woaʋu ahatu alo awɔ ɖoɖo ɖe eŋu. Zi geɖe la, kpakpaluʋui ƒe ʋuƒo si le ʋuʋu bliboe si woʋuna bliboe la medea 90 ° o, kpakpaluʋui ƒe ʋuƒo kple kpakpaluʋui ƒe ke ŋutɔ mekpɔa ŋutete be wòaxe mɔ na eɖokui o, be woatsɔ aɖo kpakpaluʋui ƒe agbalẽvi la ƒe nɔnɔme ɖe valvɔa ƒe lãkusi ƒe lãnu dzi ɖeɖe kpɔtɔ dzi. Worm gear reducer zazã, menye ɖeko wòate ŋu ana kpakpaluʋui ƒe agbalẽvi la nate ŋu atsɔ eɖokui axe mɔ na eɖokui o, ale be kpakpaluʋui ƒe agbalẽa tɔ ɖe teƒe ɖesiaɖe ko, ke ana ʋuƒoa ƒe dɔwɔwɔ nanyo ɖe edzi hã.

Dɔwɔƒewo ƒe kpakpaluʋui ƒe ʋuƒo tɔxɛ ƒe nɔnɔmewo ate ŋu anɔ te ɖe dzoxɔxɔ gã nu, nyaƒoɖeamenu ƒe didime si sɔ hã le kɔkɔm wu, valve ƒe ŋkɔ ƒe didime lolo, valvɔa ƒe ŋutilã nye carbon steel, nutrenu ƒe ring si le valve plate la nye ga ring ɖe rababa ƒe asigɛ teƒe. Wotsɔa gakpo si wotsɔ ga wɔe wɔa kpakpaluʋui ƒe ʋuƒo gã siwo ƒe dzoxɔxɔ de ŋgɔ eye wozãa wo koŋ tsɔ wɔa dzoxɔxɔ gã me gas-mɔ̃ siwo me dzoxɔxɔ le kple gas-mɔ̃wo.

kpakpaluʋui ƒe ʋuƒo siwo wɔa dɔ nyuie ƒe mɔ̃ɖaŋununya vevi etɔ̃ .

Storaen ƒe kpakpaluʋui ƒe ʋuƒoawo gbugbɔa dɔwɔƒewo ƒe sisi dzi kpɔkpɔ ɖɔna to mɔ̃ɖaŋununya yeyewo me, si ƒoa nutrenu si sɔ pɛpɛpɛ, nuawo ƒe tenɔnɔ ɖe nɔnɔme sesẽwo nu, kple smart actuation tsɔ naa dɔwɔwɔ si ɖeke mesɔ kplii o le dɔ vovovowo wɔwɔ me. Abe kpakpaluʋui ƒe ʋuƒo ƒomeviwo kple egbɔkpɔnuwo ƒe dɔwɔƒe si xɔ ŋgɔ ene la, míaƒe aɖaŋuwo kpɔa kuxi vevi siwo le tsi si le dodom, woƒe vuvu, kple dɔwɔwɔ nyuie gbɔ. Alesi mɔ̃ɖaŋununya vevi etɔ̃ ɖe míaƒe kpakpaluʋui ƒe ʋuƒoawo ɖe vovoe nye esi.

1. Eccentric nutrenu ɖoɖowo na zero-leak dɔwɔwɔ .

Míaƒe kpakpaluʋui ƒe ʋuƒo si wɔa dɔ nyuie la ƒe dzi le eƒe nɔnɔme deŋgɔ siwo nye eccentric me, si ɖea tsi ƒe sisi ƒe nya siwo bɔ si le fu ɖem na valvɔ deŋgɔwo ɖa .:

Double eccentric geometry: offset disc axis (1st eccentricity) kple zikpui ƒe dzogoe (2nd eccentricity) wɔa “line-contact” nutrenu ne wotu, si ɖea ʋuʋudedi dzi kpɔtɔna 40% ne wotsɔe sɔ kple concentric models. Aɖaŋu sia kpɔa egbɔ be ya kple tsiwo ƒe nutsitsi sesẽ, le nyaƒoɖeamenu gãwo me gɔ̃ hã (vaseɖe PN16.0MPA), si wɔe be wòsɔ nyuie na kpakpaluʋui ƒe ʋuƒo zazã le atikewo ƒe pɔmpiwo kple dzoxɔxɔ ƒe ɖoɖowo me.
Etɔ̃ siwo nye eccentric innovation: Na nɔnɔme sesẽwo (450°C+ flue gas alo abrasive media), míaƒe triple-eccentric valves kpena ɖe offset etɔ̃lia ŋu (disc face tilt), si ɖea mɔ ga-to-metal nutrenu zikpui ƒe vuvu manɔmee. Mɔ̃ɖaŋununya sia ƒo Globe Valve ƒe seɖoƒewo ta le dzoxɔxɔ gã aɖe ɖeɖe ɖe aga me, si wɔnɛ be kakaɖedzi nɔa elektrikŋusẽdɔwɔƒe ƒe yaƒoƒomɔ̃wo ŋu ɣeyiɣi didi.

2. ŋutilãmeŋutinunya na nutome sesẽ ƒe tenɔnɔ ɖe nɔnɔme sesẽwo nu .

Míewɔa mɔ̃ɖaŋununya ƒe valve ƒe akpa aɖewo be woanɔ te ɖe dɔwɔwɔ ƒe nɔnɔme sesẽtɔ kekeake nu, kpakpaluʋui ƒe valve ƒomevi siwo sɔ kple nyadzɔdzɔgblɔmɔnuwo ƒe didi tɔxɛwo .:

Ŋutilã & Disc Nuwo: Tia tso HT300 Ga si wotsɔ ƒo ƒui (gazazã nyuie na tsi/gas, -10°C ~ 200°C), WCB Carbon Steel (Dɔwɔƒe si me wowɔa dɔ le, -29°C ~ 425°C), alo 316°C si me tsi mele o ( -40°C). Míaƒe kpakpaluʋui ƒe ʋuƒo siwo ƒe didime nye inch 6 kple inch 4 la ɖea disc ribs siwo le kpekpem la fiana be woaxe mɔ na deformation le sisi ƒe sesẽme gã te, si wu deconments designs to 25% le cycle life me.
Nutrenu ƒe ƒuƒoƒo: Soft seals (NBR/EPDM) naa ≤0.1mm leakage tolerance na tsi kple tsi gbegblẽwo, esime nutrenu sesẽwo (ga si me ƒoɖi mele o + graphite) wɔa dɔ le nusuekpɔmɔ̃ siwo me nusuekpɔmɔ̃wo le ŋu si me tsi megbãna o, si le vevie ŋutɔ na tomenukuƒewo ƒe ʋeʋẽ alo siminti numiemiewo.

3. Nunya ƒe dɔwɔwɔ hena dziɖuɖu pɛpɛpɛ .

Míaƒe kpakpaluʋui ƒe ʋuƒoawo ƒoa mɔ̃ deŋgɔwo nu ƒu be woatsɔ ado dɔwɔwɔ nyuie kple dedienɔnɔ ɖe ŋgɔ .:

Worm gear reducers: standard on manual valves, esiawo naa 5:1 torque ƒe dzidziɖedzi kple ɖokui-ʋuʋu ƒe dɔwɔwɔ, si wɔnɛ be woate ŋu awɔ dɔ bɔbɔe 90° gɔ̃ hã na 12-inch ƒe didimewo esime woɖe Backdrive ƒe afɔkuwo ɖa le vertical pipelines me.
Automation-ready design: ya, elektrik, alo hadrolik actuators to tẽ ɖe ISO 5211 top flanges, supporting fail-safe positions (open/close/hold) kple 4-20mA feedback na PLC ƒe ƒoƒo ɖekae. Esia na míaƒe valvɔwo sɔ nyuie na dɔwɔwɔ le wo ɖokui si, si ɖea ŋuɖoɖo ɣeyiɣi dzi kpɔtɔna 30% ne wotsɔe sɔ kple domenyinu Globe Valve Systems.

Do wò sisi dzi kpɔkpɔ ɖe dzi kple Storaen .

Tso tsi ƒe mama dzi va ɖo dɔwɔƒewo ƒe dɔwɔwɔ siwo me dzoxɔxɔ le ŋutɔ dzi la, míaƒe kpakpaluʋui ƒe ʋuƒoawo naa nusiwo sɔ pɛpɛpɛ, woƒe anyinɔnɔ nɔa anyi didina, eye woate ŋu atrɔ ɖe nɔnɔmewo ŋu. Le nutrenu yeyewo, nu xɔasiwo, kple smart actuation me la, míetrɔ kpakpaluʋui ƒe ʋuƒoa tso mɔ̃ bɔbɔe aɖe si wotsɔna tsia nu me wòzua dziɖuɖu ƒe egbɔkpɔnu si wɔa dɔ nyuie. Dzro míaƒe kpakpaluʋui ƒe ʋuƒo siwo míedzrana egbea me eye nàkpɔ vovototo si mɔ̃ɖaŋununya ƒe nunya wɔna la me—elabena le sisi dzi kpɔkpɔ me la, dɔwɔwɔe nye nusianu.

Storaen Butterfly Valves: Egbɔkpɔnu Siwo Wowɔ Ðe Ðoɖo Nu Kple Woƒe Nyonyome Ŋuti Kakaɖedzi .

Storaen ɖɔa dɔwɔƒewo ƒe sisi dzi kpɔkpɔ kple kpakpaluʋui ƒe ʋuƒo ƒe kuxiwo gbɔkpɔnu siwo wowɔ ɖe ɖoɖo nu kple nyonyome ƒe dzidzenu siwo meɖea asi le wo ŋu o, si kpɔa egbɔ be valvɔ ɖesiaɖe ɖo wò dɔwɔwɔ ƒe didi tɔxɛwo gbɔ. Tso nusiwo wotsɔ wɔa dɔe tiatia dzi va ɖo dɔwɔwɔ ƒe ɖaseɖigbalẽ dzi la, míaƒe kpakpaluʋui ƒe ʋuƒo ƒomeviwo ƒoa mɔ̃ɖaŋununya ƒe asitɔtrɔ le nɔnɔmewo ŋu kple nyonyome ƒe kakaɖedzi sesẽ nu ƒu—alesi míetsɔa nusiwo sɔ pɛpɛpɛ naa wò nuhiahiã tɔxɛwoe nye esi.

Trɔtrɔ ɖe Nɔnɔme Ŋu: Wotrɔ asi le eŋu wòsɔ ɖe wò nɔnɔme siwo tututu nèdi nu

1. Tailored Sizing & Configurations .
Esi míetsyɔ DN40 dzi va ɖo DN1200 dzi la, míaƒe kpakpaluʋui ƒe ʋuƒo si ƒe didime nye inch 4 kple kpakpaluʋui ƒe ʋuƒo siwo ƒe didime nye inch 6 (kple esiwo wu nenema) trɔna ɖe pɔmpi ƒe kadodo siwo le dzidzenu ɖesiaɖe me ŋu. Non-standard sizes? Míewɔa custom diameters na ɖoɖo tɔxɛwo, tso compact HVAC systems dzi va ɖo dɔwɔƒewo ƒe pɔmpi gãwo dzi.
Tia wafer, lug, flanged, alo welded connections be wòasɔ kple ASME, DIN, alo JIS ƒe dzidzenuwo—si ɖea adapter ƒe fuɖenamewo ɖa le xexeame katã ƒe dɔwo me.

2. Nuwo & Nutrenu Nyuitɔ .

Ŋutilã ƒe Nuwo: Tia HT300 Ga si wotsɔ ƒo ƒui (tsi/gas), WCB Carbon Steel (Heavy dɔwɔƒe), alo 316L gakpo si mexɔ dzo o (tsitretsitsi ɖe nu ŋu) na suit media tso -40°C va ɖo 450°C.
Nutrenu Ƒomeviwo: Nutrenu falɛfalɛwo (NBR/EPDM) na tsi/tsiƒuƒu (≤0.1mm ƒe sisi), alo ga sesẽ nutrenuwo (ga si me ʋuʋudedi mele o + graphite) na ya si ƒe dzoxɔxɔ de ŋgɔ/gas si me dzoxɔxɔ le—si wɔa dɔ le anyigba ƒe nɔnɔme si nɔa anyi didina wu le nɔnɔme siwo me abrasive le me.

3. Actuation & dɔwɔwɔ .

Manual (worm gear), ya, elektrik, alo hadrolik actuators kple ISO 5211 Mounting kpɔ egbɔ be wokpɔ edzi pɛpɛpɛ. Tsɔ mɔ̃ siwo me afɔku mele o (ya-to-ʋuʋu/tu) alo 4-20mA ƒe nyaŋuɖoɖo na dɔwɔwɔ siwo wowɔna le wo ɖokui si.
Aɖaŋu tɔxɛwo: cryogenic valves (-196°C), mɔ̃ siwo me ya geɖe le, alo dzoxɔxɔ-dedienɔnɔ ƒe ɖoɖowo na dedienɔnɔ-veviewo zazã.

Nɔnɔme si me woɖea asi le nu ŋu le o: tso aɖaŋuwɔwɔ dzi va ɖo etsɔtsɔ yi na amewo dzi .

1. Dodokpɔ ƒe ɖoɖo sesẽ .

Hydrostatic dodokpɔwo: 1.5x nyaƒoɖeamenu ƒe dzeside na gowo, 1.1x na zikpuiwo, si ɖo kpe zero leakage dzi.
Cycle testing: 5,000+ dɔwɔwɔwo na soft seals, 10,000+ na hard seals—si ɖoa kpe edzi be woanɔ anyi eteƒe nadidi wu dɔwɔƒewo ƒe ɖoɖowo.
Nusiwo wotsɔ kpɔa nue: Nutunu ƒe ɖaseɖigbalẽ le akpa ɖesiaɖe me, si ana woakpɔ egbɔ be wowɔ ɖe atikewo ƒe tsitretsitsi kple dzoxɔxɔ ƒe nudidiwo dzi.

2. Mɔɖegbalẽ & Dzadzra megbe Kpekpeɖeŋu .

Ƒe 1 ƒe mɔɖegbalẽa tsyɔa nutrenu ƒe dɔwɔwɔ kple mɔ̃ɖaŋununya ƒe gbɔdzɔgbɔdzɔwo dzi, kple 24/7 mɔ̃ɖaŋununya ƒe kpekpeɖeŋu hena eɖoɖo, edzikpɔkpɔ, alo kuxiwo gbɔ kpɔkpɔ.
Spare parts Availability: Zikpui siwo woatsɔ aɖɔli wo, diskwo, alo actuators siwo woatsɔ aɖɔli woe la ɖoɖo kaba be woaɖe ɣeyiɣi si woatsɔ awɔ dɔe dzi akpɔtɔ—si sɔ na asisi siwo ƒlea kpakpaluʋui ƒe ʋuƒo siwo wodzrana le agbɔsɔsɔ gã me.

Nukatae woatia Storaen na kpakpaluʋui ƒe ʋuƒo siwo wowɔ ɖe ɖoɖo nu?

Dɔwɔwɔ ŋuti nunya: Eɖanye be èhiã na kpakpaluʋui ƒe ʋuƒo si le titina na tsi ƒe dɔwɔwɔ alo mɔ̃ si ƒe nɔnɔme nye triple-eccentric na petrochemical plants o, míaƒe mɔ̃ɖaŋudɔwɔlawo ɖoa kpakpaluʋui ƒe ʋuƒo ƒomeviwo kple dɔwɔwɔwo ɖe wò dɔwɔwɔ ƒe nɔnɔme tututuwo dzi.
Gazazã bliboa ƒe nyonyome: Egbɔkpɔnu siwo wowɔ ɖe ɖoɖo nu ɖea gazazã siwo gbɔ eme dzi kpɔtɔna, esime aɖaŋu siwo nɔa anyi didina ɖea beléle na wo dzi kpɔtɔna 30% ne wotsɔe sɔ kple valvɔ siwo wozãna le mɔ vovovowo nu.

Do wò ɖoɖoa ɖe dzi kple alesi wowɔe pɛpɛpɛ si wowɔ ɖe ɖoɖo nu .

Mègaɖoe be yeaƒle nu le asi me ne wò dɔwɔnawo bia nu nyui wɔwɔ o. Storaen ƒe kpakpaluʋui ƒe ʋuƒo siwo wowɔ ɖe ɖoɖo nu—siwo ƒe nyonyome ƒe kakaɖedzi sesẽ le megbe na—tsɔa dɔwɔwɔ, kakaɖedzi, kple tɔtrɔ ɖe nɔnɔmewo ŋu naa wò dɔwo dze. Dzro míaƒe kpakpaluʋui ƒe ʋuƒo siwo wodzrana me egbea eye nàke ɖe alesi mɔ̃ɖaŋununya si wowɔ ɖe ɖoɖo nu trɔa asi le sisi dzi kpɔkpɔ ŋui ŋu.

Ðoɖowɔwɔ ɖe ɖoɖo nu le ɖoɖo ƒe nɔnɔme nu .
(1)Center Sealed Butterfly Valve .

(2)ɖekaɖeka eccentric nutrenu kpakpaluʋui ƒe ʋuƒo .
(3) Double eccentric nutrenu kpakpaluʋui ƒe ʋuƒo .

(4) Eccentric nutrenu etɔ̃ kpakpaluʋui ƒe ʋuƒo .

Le nutrenu ƒe anyigbadzinu ƒe hatsotsowo ƒe nya nu la .
(1) Nutrenu falɛfalɛ kpakpaluʋui ƒe ʋuƒo .:
1) nutrenu VICE to non-metallic falɛfalɛ nu na non-metallic falɛfalɛ nu ƒe wɔwɔme.
2) nutrenu vice to ga sesẽ nu na non-metallic falɛfalɛ nu ƒe wɔwɔme.
(2) ga sesẽ nutrenu kpakpaluʋui valve: nutrenu vice to ga sesẽ nu na ga sesẽ nu wɔwɔme.

Ðoɖo ɖe hatsotsowo me to nutrenu ƒe agbalẽvi dzi .
(1) Nutrenu si wozi ɖe ame dzi kpakpaluʋui ƒe ʋuƒo .
1) Elastic seal kpakpaluʋui ƒe ʋuƒo. Tsɔ valve plate extrusion valve seat la nutrenu tɔxɛ aɖe Ne wotu valvɔa, valvɔa ƒe zikpui alo valve plate elasticity si wowɔ.
2) gotagome torque nutrenu kpakpaluʋui ƒe ʋuƒo. Nutrenu ƒe nyaƒoɖeamenu dzɔna to torque si wotsɔ de valve shaft la me.
(2) nyaƒoɖeamenu kpakpaluʋui kpakpaluʋui ƒe ʋuƒo. Nutrenu ƒe nyaƒoɖeamenu tɔxɛa nyea valve seat alo valve plate si le poppet sealing element filling pressure la dzi.
(3) Automatic nutrenu kpakpaluʋui ƒe ʋuƒo. Nutrenu ƒe nyaƒoɖeamenu dzɔna le eɖokui si to nyaƒoɖeamenu si le titina la me.

Dɔwɔwɔ ƒe nyaƒoɖeamenuwo ƒe hatsotsowo me toto ɖe hatsotsowo me .
(1) Vacuum kpakpaluʋui ƒe ʋuƒo. Dɔwɔwɔ ƒe nyaƒoɖeamenu si le yame ƒe ɣletigbalẽ ƒe kpakpaluʋui ƒe ʋuƒo si wozãna ɖaa la te.
(2) kpakpaluʋui ƒe ʋuƒo si me nyaƒoɖeamenu mele o. Nominal pressure PN <1.6MPA Butterfly valve.
(3) Medium pressure kpakpaluʋui ƒe ʋuƒo. Ŋkɔnya ƒe nyaƒoɖeamenu PN 2.5 – 6.4MPa kpakpaluʋui ƒe ʋuƒo.
(4) kpakpaluʋui ƒe ʋuƒo si me ya ƒoa nu le ŋutɔ. Ŋkɔ ƒe nyaƒoɖeamenu PN 10.0 – 80.0MPA Kpakpaluʋui ƒe ʋuƒo.
(5) Ultra-kɔkɔe ƒe nyaƒoɖeamenu kpakpaluʋui ƒe ʋuƒo. Nyaƒoɖeamenu le ŋkɔ me PN>100MPA Kpakpaluʋui ƒe ʋuƒo.

Ƒomedodowo me toto to dzoxɔxɔ si wozãna le dɔwɔwɔ me dzi .
(1) kpakpaluʋui ƒe ʋuƒo si me dzoxɔxɔ le ŋutɔ. T>450 C kpakpaluʋui ƒe ʋuƒo .
(2)Medium dzoxɔxɔ kpakpaluʋui ƒe ʋuƒo. 120 C .(3) Dzoxɔxɔ si sɔ kpakpaluʋui ƒe ʋuƒo. A 40 C .(4) kpakpaluʋui ƒe ʋuƒo si ƒe dzoxɔxɔ le sue. Kpakpaluʋui ƒe ʋuƒo si nye 100 . (5) ultra-low dzoxɔxɔ kpakpaluʋui ƒe ʋuƒo. T< 100 C kpakpaluʋui ƒe ʋuƒo.

(1) Kpakpaluʋui ƒe ʋuƒo.

Wodea kpakpaluʋui ƒe kpakpaluʋui ƒe kpakpaluʋui ƒe ʋuƒoa ƒe akpa si nye kpakpaluʋui la pɔmpia ƒe didime nu. Le kpakpaluʋui ƒe ʋuƒo ƒe ŋutilã ƒe mɔ si le abe ʋuƒo ene me la, kpakpaluʋui ƒe agbalẽvi si le abe disk ene la trɔna ƒoa xlã axis la, dzogoe si dzi wòtrɔna le 0 ° – 90 ° dome, si trɔna yia 90 ° me la, ʋuƒoa le ʋuʋu ɖi bliboe.

Kpakpaluʋui ƒe ʋuƒo le bɔbɔe le eƒe wɔwɔme me, eƒe lolome le sue eye eƒe kpekpeme le bɔbɔe, eye eƒe akpa ʋɛ aɖewo koe le eme. eye ɖeko wòle be woatrɔ 90 ° ate ŋu aʋu kabakaba ahatu, dɔwɔwɔ bɔbɔe, le ɣeyiɣi ma ke me la, tsidzikpɔkpɔ ƒe nɔnɔme nyuiwo le valvɔa ŋu. Ne kpakpaluʋui ƒe ʋuƒoa le nɔnɔme si le ʋuʋu bliboe me la, kpakpaluʋui ƒe agbalẽa ƒe titrime koe nye tsitretsitsi ne titina la sina toa ʋuƒoa ƒe ŋutilã me, eyata nyaƒoɖeamenu ƒe ɖiɖi si valvɔa wɔna la le sue ŋutɔ, eyata eƒe sisi dzi kpɔkpɔ ƒe nɔnɔme nyuiwo le esi. Kpakpaluʋui ƒe ʋuƒoa ƒe nutrenu ƒomevi eve le esi: elastic seal kple ga nutrenu. Elastic seal valve, woate ŋu aɖo nutrenu la ɖe valve la ƒe ŋutilã me alo atsɔe abla ɖe kpakpaluʋui ƒe agbalẽvi la ŋu ƒo xlãe.

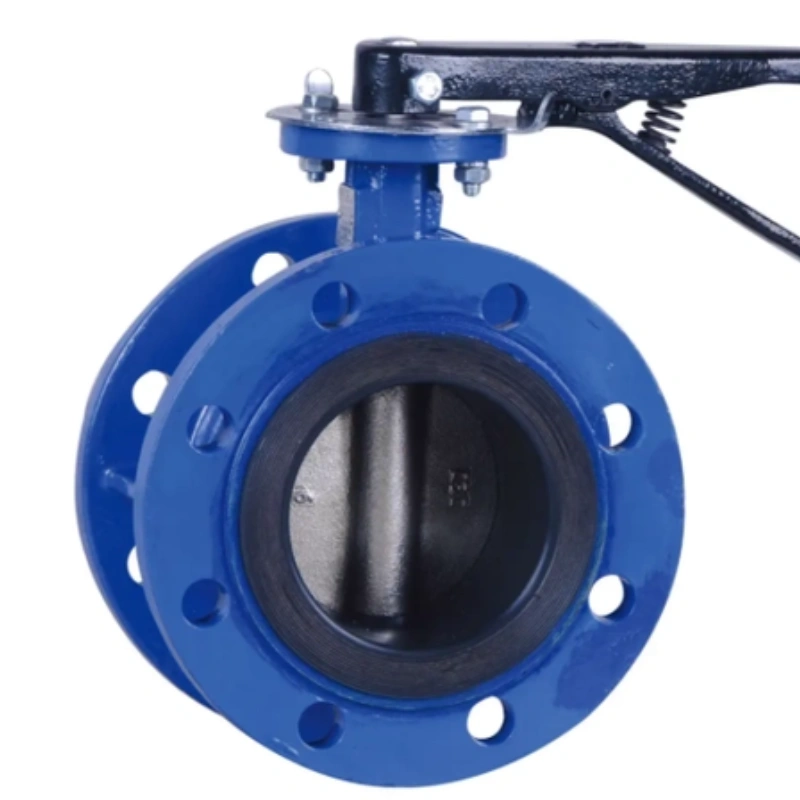

(2) Flanged kpakpaluʋui ƒe ʋuƒo.

Flanged kpakpaluʋui valve na tsitrenu plate structure, valve stem na integral ga sesẽ nutrenu valve nutrenu asigɛ na graphite plate kple gakpo si mexɔ dzo o ƒe ƒuƒoƒo ƒe wɔwɔme, si wotu ɖe valve ƒe ŋutilã dzi, kpakpaluʋui gbadzɛ nutrenu ƒe anyigba dzi welded gakpo si mexɔ dzo o. Wotsɔa nitrile rababa wɔa nutrenu falɛfalɛa ƒe ʋuƒoa ƒe nutrenu ƒe asigɛ, eye wotsɔa kpakpaluʋui ƒe agbaa dana ɖe edzi.

(3)Lug ƒomevi kpakpaluʋui ƒe ʋuƒo.

(4) kpakpaluʋui ƒe ʋuƒo si wotsɔ ga wɔe.

Welded Butterfly Valve nye kpakpaluʋui ƒe ʋuƒo si wometu o, si wozãna geɖe le xɔtunuwo, gaŋutinunya, tomenukuƒe, elektrikŋusẽ kple nu bubu siwo wowɔna me, dzoxɔxɔ si le titina ≤ 300 °C 0.1MPA pɔmpi, si wozãna tsɔ doa ka, ʋuna eye wòtua alo trɔa asi le nyadzɔdzɔgblɔmɔ̃ ƒe agbɔsɔsɔme ŋu.

Klamped falɛfalɛ nutrenu kpakpaluʋui valve nɔnɔme vevitɔ ƒe kadodo ƒe lolome unit: mm

Nukae kpakpaluʋui ƒe ʋuƒo si wozãna na?

Kpakpaluʋui ƒe ʋuƒo nye ʋuƒo ƒomevi aɖe si trɔna si zãa disk si trɔna tsɔ ɖɔa tsi ƒe sisi ɖo. Eƒe aɖaŋua de nu vovovo siwo na wòsɔ na dɔ tɔxɛ aɖewo wɔwɔ le dɔwɔƒe vovovowo me, siwo dometɔ aɖewoe nye tsizazã, tsi gbegblẽwo ŋudɔwɔwɔ, atikewo zazã, kple HVAC ƒe ɖoɖowo. Gɔmesese kple viɖe siwo le kpakpaluʋui ƒe ʋuƒo ŋu ate ŋu akpe ɖe ŋuwò nàwɔ nyametsotso siwo ŋu kakaɖedzi le le eƒe zazã ŋu le nɔnɔme vovovowo me.

Taɖodzinu vevi ɖeka si le kpakpaluʋui ƒe ʋuƒo ŋue nye be wòakpɔ tsi kple ya siwo le sisim la dzi. Disk si le valvɔa me la ƒoa xlã titina ƒe axadzi, si wɔnɛ be woate ŋu awɔ dɔ kabakaba ahawɔe nyuie. Mɔ̃ sia si trɔna le ɣleti ene me la ɖea vi ŋutɔ ne ehiã be woawɔ asitɔtrɔ kabakaba le sisi ƒe agbɔsɔsɔme ŋu. Le kpɔɖeŋu me, le tsiɖɔɖɔɖɔɖɔƒewo alo dɔwɔƒewo ƒe dɔwɔwɔ siwo me wokpɔa wo dzi pɛpɛpɛ le vevie la, kpakpaluʋui ƒe ʋuƒo ate ŋu anye egbɔkpɔnu nyui aɖe.

Gakpe ɖe eŋu la, wodea dzesi kpakpaluʋui ƒe ʋuƒoawo le woƒe wɔwɔme si le bɔbɔe eye wòle sue ta. Ne wotsɔe sɔ kple ʋuƒo ƒomevi bubuwo la, womexɔa teƒe boo o, si wɔe be wosɔ nyuie na teƒe siwo woda wo ɖo le teƒe siwo xaxa alo ne kpekpeme ŋu bubu le vevie ŋutɔ. Eɖanye le pɔmpiwo me alo teƒe siwo woxe mɔ na o, kpakpaluʋui ƒe ʋuƒo ƒe nɔnɔme si me nu boo aɖeke mele o ɖea mɔ be woate ŋu awɔ dɔ le mɔ vovovowo nu evɔ womatsɔ dɔwɔwɔ asa vɔe o.

Nu bubu si ɖe dzesi le kpakpaluʋui ƒe ʋuƒo ŋue nye be woaɖe wo ɖe aga le ɖoɖoa me. To disk la tutu bliboe me la, ʋuƒoa wɔa nutrenu sesẽ aɖe si xea mɔ na tsi ƒe sisi. Esia ɖea vi ŋutɔ le beléle na nɔnɔme siwo me wòhiã be woaɖe pɔmpi ƒe akpa aɖewo ɖe aga le la me. Ŋutete si le ame si be wòatso sisi nu kabakaba eye kakaɖedzi le eŋu la nana kpakpaluʋui ƒe ʋuƒoawo nyea nu vevi aɖe le ɖoɖowo dzi kpɔkpɔ me eye wokpɔa egbɔ be wole dedie le dɔwɔƒewo ƒe dɔwɔwɔ vovovowo me.

Kpuie ko la, wozãa kpakpaluʋui ƒe ʋuƒo le dɔ geɖe wɔwɔ me tsɔ ɖɔa tsi si sina toa eme, ɖea ɖoɖowo ɖe aga, eye wòdoa dɔwɔwɔ nyuie ɖe ŋgɔ. Eƒe wɔwɔme si le sue, eƒe dɔwɔwɔ kabakaba, kple kakaɖedzi na wònye tiatia si ame geɖe lɔ̃na le dɔwɔƒe geɖe. Nusi kpakpaluʋui ƒe ʋuƒo si wozãna na gɔmesese ana nàkpɔ ŋudzedze ɖe akpa vevi si wòwɔna le tsi dzi ɖuɖu kple edzikpɔkpɔ me ŋu. Eɖanye be èle gome kpɔm le mɔ̃ɖaŋudɔwɔwɔ, beléle na wò, alo dɔwɔƒewo ƒe nɔnɔme me o, kpakpaluʋui ƒe ʋuƒo ƒe dɔwɔwɔwo gɔmesese sesẽ aɖe asubɔ wò nyuie le wò dɔnyala ƒe agbagbadzedzewo me.

Viɖe siwo le kpakpaluʋui ƒe ʋuƒo ŋu .

Viɖe ɖedzesi ɖeka si le kpakpaluʋui ƒe ʋuƒoawo ŋue nye woƒe wɔwɔme si le sue. To vovo na valvɔ xoxo siwo te ŋu lolona la, kpakpaluʋui ƒe ʋuƒo siwo wotsɔna ƒoa ʋuƒoe la nyea disk bɔbɔe aɖe si wotu ɖe ʋuƒo dzi. Xɔ sia si wowɔ ɖe ɖoɖo nu la ɖea mɔ be woaɖoe ɖe teƒe siwo xaxa, si wɔe be wonye tiatia nyui aɖe na dɔ siwo me teƒe sue aɖe le na dɔwɔnuwo. Tsɔ kpe ɖe eŋu la, woƒe kpekpeme si le bɔbɔe la ɖea pɔmpiɖoɖowo ƒe kpekpeme bliboa dzi kpɔtɔna, si wɔnɛ be woate ŋu awɔ wo ŋudɔ bɔbɔe wu eye woade wo wo me bɔbɔe.

Viɖe vevi bubu si le kpakpaluʋui ƒe ʋuƒoawo ŋue nye woƒe dɔwɔwɔ kabakaba. Aɖaŋua naa ʋuʋu kabakaba kple etutu nɔa bɔbɔe, eye dzidzenu 90 koe hiã hafi woate ŋu aʋuʋu bliboe. Nɔnɔme sia xɔ asi ŋutɔ le dɔwɔwɔ siwo me tsi si sina le ɣeyiɣi nyuitɔ dzi la nye nu vevitɔ kekeake, abe tsiɖɔɖɔɖɔɖodɔwɔƒewo alo atikewɔdɔwɔƒewo ene. Kpakpaluʋui ƒe ʋuƒoawo ƒe ŋuɖoɖo kabakaba kpena ɖe ame ŋu be dɔwɔwɔ nyuie si dzi ɖe edzi eye wòɖea ɣeyiɣi si woatsɔ awɔ dɔe dzi ɖena kpɔtɔna.

Gawu la, kpakpaluʋui ƒe ʋuƒo siwo wotsɔna ƒoa tsii la naa sisi ƒe ɖoɖo nyuitɔ kekeake. Ne woʋu ʋuƒo siawo ƒe akpa aɖe la, woate ŋu awɔ sisimɔ si le bɔbɔe esime wole nyadzɔdzɔgblɔmɔnuwo dzi tom nyuie. Nɔnɔme sia le vevie ŋutɔ le dɔwɔwɔ siwo me tsi ƒe sisi dzi kpɔkpɔ pɛpɛpɛ le vevie ŋutɔ, si ɖea mɔ na ɖoɖoa ƒe dɔwɔwɔ si mewɔa tɔtrɔ o.

Kpakpaluʋui ƒe ʋuƒo siwo wotsɔna ƒoa kpakpaluʋuiwo hã ɖea nusiwo nɔa anyi didina eye beléle na wo ƒe hiahiãwo medea ame dzi o fiana. Wotsɔ nusiwo sesẽ abe gakpo si mexɔ dzo o alo PVC ene wɔ wo, eye wote ŋu nɔa te ɖe xɔxlɔ̃ nu, si wɔe be wosɔ na nu vovovowo, siwo dometɔ aɖewoe nye atike sesẽwo kple nuto siwo gblẽa nu le wo ŋu. Woƒe mɔ̃ bɔbɔe la ɖea alesi wòanya wɔ be mɔ̃wo nado kpo nu dzi kpɔtɔna, si wɔnɛ be beléle na wo ƒe nudidiwo kple dɔwɔwɔ ƒe gazazãwo dzi ɖena kpɔtɔna.

Mlɔeba la, alesi kpakpaluʋuiwo ƒe ʋuƒoawo trɔna ɖe nɔnɔmewo ŋui la na wosɔ na dɔ vovovowo wɔwɔ le dɔwɔƒe vovovowo me. Tso HVAC-mɔ̃wo dzi va ɖo tsidzɔƒewo kple tsi gbegblẽwo ŋu la, ʋuƒo siawo ate ŋu akpɔ tsi vovovowo gbɔ, si ana woƒe viɖekpɔkpɔ nanyo ɖe edzi le agble geɖe dzi.

Vovototo kae le agbonudzɔmɔ̃ kple kpakpaluʋui ƒe ʋuƒo dome?

Dɔwɔwɔ ƒe mɔnu .

Vovototo gbãtɔ si le agbo ƒe ʋuƒoawo kple kpakpaluʋui ƒe ʋuƒoawo dome la le woƒe wɔwɔme kple dɔwɔwɔ ƒe mɔnuwo me. A . Agbo ƒe ʋuƒo . Zãa fli me ʋuʋu tsɔ kɔa agbo aɖe alo ɖiɖinɛ be wòakpɔ tsi si sina toa eme dzi. Mɔ̃ sia sɔ nyuie na on-off control gake mewɔa dɔ nyuie le throttling dɔwo me o. Le go bubu me la, kpakpaluʋui ƒe ʋuƒo nyea disk si trɔna si ƒoa xlã titina ʋuƒo aɖe be wòaɖɔ tsi si sina toa eme ɖo. Aɖaŋu sia na woate ŋu awɔ dɔ kaba eye wòwɔa dɔ nyuie ŋutɔ le throttling me.

sisi dzi kpɔkpɔ kple dɔwɔwɔ nyuie .

Vovototo vevi bubue nye sisi ƒe nɔnɔmewo. Wonya kpakpaluʋui ƒe ʋuƒoawo ɖe woƒe ŋutete be woana tsi ƒe sisi ƒe agbɔsɔsɔ si nɔa anyi ɖaa si me nyaƒoɖeamenu ƒe ɖiɖi suetɔ kekeake le ta. Dɔwɔwɔ nyuie sia ɖea vi ŋutɔ le dɔwɔnu gãwo zazã me eye afisi teƒe le sue. To vovo na ema la, agbonudzɔnuwo mewɔa dɔ nyuie le ʋuƒo me o eye woate ŋu ahe tɔtɔ vɛ, si wɔnɛ be dɔwɔwɔ ƒe gbɔdzɔgbɔdzɔ le nɔnɔme siwo me tsi sina tona me.

Nusiwo ŋu woabu le teƒe kple kpekpeme ŋu .

Zi geɖe la, kpakpaluʋui ƒe ʋuƒo siwo le kpakpaluʋuiwo me la le sue wu eye woƒe kpekpeme le bɔbɔe wu agbonudzɔmɔ̃wo. Aɖaŋu sia si wotsɔ ɖea yamenutome ŋu la na kpakpaluʋui ƒe ʋuƒo siwo sɔ na wo ɖoɖo ɖe teƒe siwo xaxa, afisi agbonu siwo wozãna tsã ate ŋu anye agba le. Kpakpaluʋui ƒe ʋuƒo siwo ƒe kpekpeme dzi ɖe kpɔtɔ la nana be wo zazã le wo ɖoɖo kple wo dzi kpɔkpɔ me nɔa bɔbɔe.

Dɔbiagbalẽvi ƒe nyonyome .

Valve ƒomevi eveawo siaa ƒe dɔ aɖewo koŋ le afisi wowɔ wo nyuie wu le. Wozãa gate valves zi geɖe le dɔ siwo bia be woatsɔ nyaƒoɖeamenu sue aɖe ko aɖo wo me eye afisiwo ameɖokuiɖeɖeɖa bliboe nye nu vevitɔ le. Le go bubu me la, wolɔ̃a kpakpaluʋui ƒe ʋuƒo siwo me wowɔa dɔ le le ɖoɖo siwo bia be woawɔ dɔ kabakaba eye woatrɔ asi le tsi ƒe sisi ŋu enuenu la me, si wɔe be wosɔ nyuie na HVAC-ɖoɖowo, tsimama, kple tsi gbegblẽwo gbɔ kpɔkpɔ.

Nukae nye kpakpaluʋui ƒe ʋuƒo ƒomevi etɔ̃awo?

1. kpakpaluʋui ƒe ʋuƒo siwo le titina .

Woɖe dzesi le kpakpaluʋui ƒe ʋuƒo siwo le titina la ŋu be wowɔ wo bɔbɔe, afisi wowɔa disk la le le mɔ si mesɔ o nu kple valvɔa ƒe ŋutilã. Le ɖoɖo sia me la, disk la trɔna ƒoa xlã axis si sɔ kple tsi si le sisim. Wozãa kpakpaluʋui ƒe ʋuƒo siwo le titina koŋ le nyaƒoɖeamenu sue aɖe me, si wɔe be wosɔ nyuie na tsi kple tsi gbegblẽwo ŋu dɔ wɔwɔ. Woƒe aɖaŋu si le tẽ la ɖea mɔ na sisi dzi kpɔkpɔ nyuie kple nyaƒoɖeamenu sue aɖe ko, si wɔnɛ be wowɔa dɔ nyuie wu le nɔnɔme vovovowo me.

2. Eccentric kpakpaluʋui ƒe ʋuƒo .

Eccentric butterfly valves, si wogayɔna be kpakpaluʋui ƒe ʋuƒo siwo wɔa dɔ nyuie la, ƒe nɔnɔme tɔxɛ aɖe le eŋu si wɔnɛ be woate ŋu axe mɔ na disk la tso valvɔa ƒe zikpui dzi. Aɖaŋu sia nana nutrenu ƒe ŋutetewo nyona ɖe edzi eye wòɖea alesi valvɔa ƒe akpawo vuvui dzi kpɔtɔna. Eccentric butterfly valves sɔ nyuie na dɔ siwo bia nu geɖe wu, siwo dometɔ aɖewoe nye esiwo ku ɖe nyaƒoɖeamenu kple dzoxɔxɔ si lolo wu ŋu. Wobi ɖe dɔwo abe alesi wowɔa nu ɖe ame ŋu, tsi siwo gblẽa nu le ame ŋu, kple nyadzɔdzɔgblɔmɔ̃ sesẽ bubuwo ŋu, si wɔnɛ be wowɔa dɔ ɣeyiɣi didi eye kakaɖedzi nɔa wo ŋu.

3. kpakpaluʋui ƒe ʋuƒo eve siwo nye eccentric .

Double eccentric butterfly valves, alo triple offset butterfly valves, tsɔ eccentric valves ƒe nɔnɔme yi ŋgɔe. Ne wotsɔ offset eve—ɖeka na disk la ƒe tɔtrɔ eye bubu na nutrenu ƒe anyigba—la, valvɔ siawo naa dɔwɔwɔ si nyo wu, vevietɔ le nɔnɔme siwo bia nu geɖe me. Eccentric ƒe nɔnɔme eve nana be ʋuʋudedi si le disk la kple zikpui dome la bɔbɔ ɖe anyi wu, si wɔnɛ be woate ŋu axe nutrenu sesẽ aɖe evɔ womado si do ƒome kple valvɔ ƒe nɔnɔme xoxowo o. Woawoe nye tiatia nyuitɔ kekeake na dɔ siwo me nyaƒoɖeamenu geɖe le, siwo me dzoxɔxɔ le eye wokpɔa wo zi geɖe le dɔwɔƒewo abe ami kple gas, elektrikŋusẽ wɔwɔ, kple atikewo ene me.
