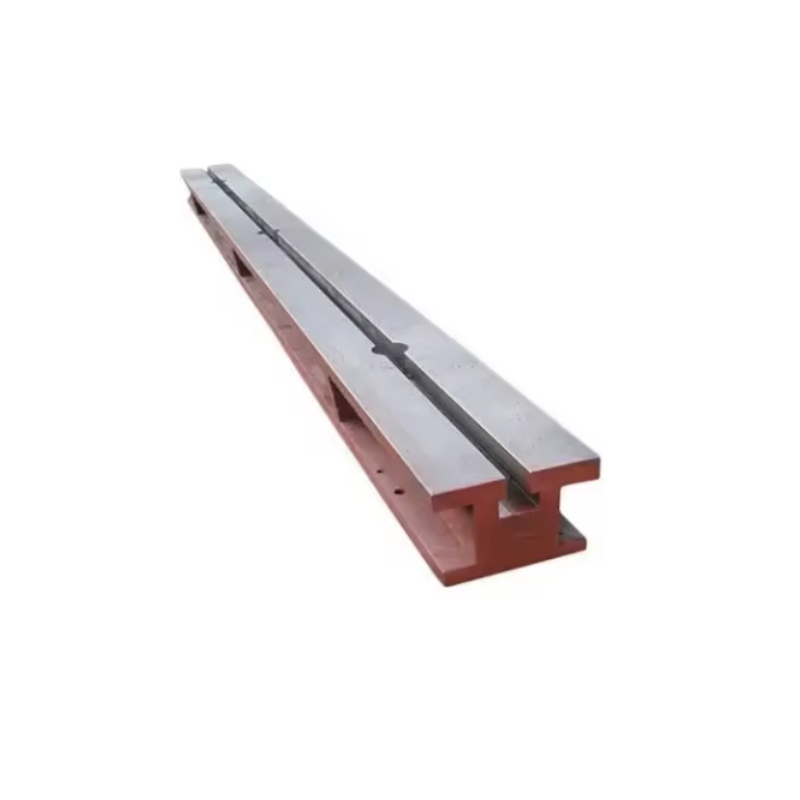

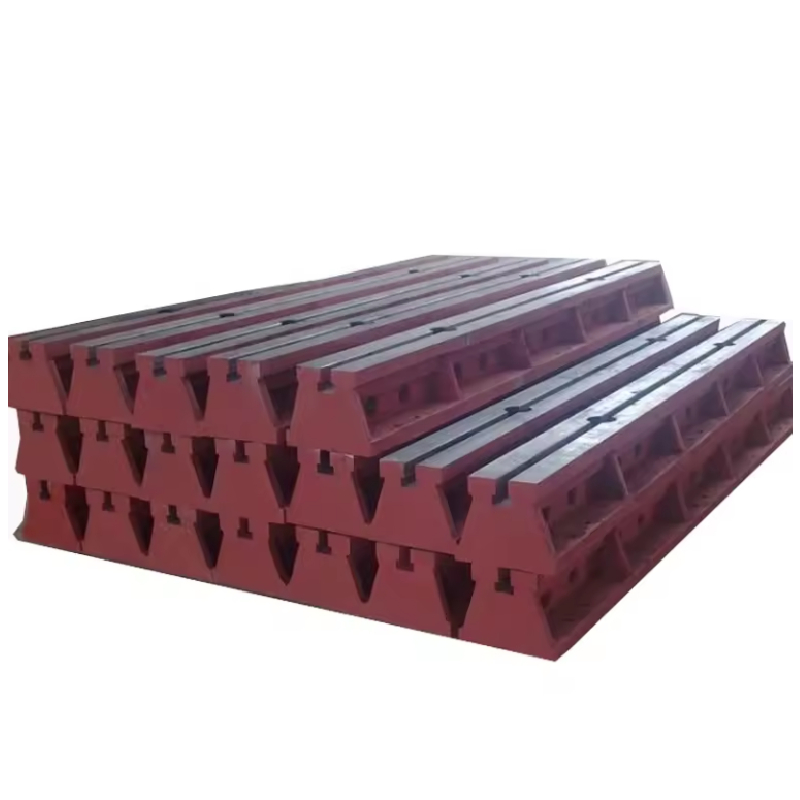

Mɔfiame Ketekemɔ

Teƒe si wotso:Hebei, China

Mɔɖegbalẽ:Ƒe 1

Kpekpeɖeŋu si wowɔ ɖe ɖoɖo nu:OEM, ODM, OBM

Adzɔnu ƒe ŋkɔ:Storan

Kpɔɖeŋu xexlẽdzesi:2008

Nusiwo wotsɔ wɔe:HT200-HT300

Nyateƒetoto:Wotrɔ asi le eŋu .

Dɔwɔwɔ ƒe nɔnɔme:Wowɔ ɖoɖo ɖe eŋu

Nu ƒe kpekpeme:Wotrɔ asi le eŋu

Ŋutete:Wowɔ ɖoɖo ɖe eŋu .

Specification:1500-4000mm ƒe didime alo Trɔ asi le

Anyigba dzi:t-slots .

Dɔwɔƒe si le dɔ wɔm ƒe sesẽ:HB160-240

Anyigbadzidɔwɔwɔ:Mɔ̃wɔwɔ

Foundry ƒe dɔwɔwɔ:Sinin Sand Casting

Nutata:Primer kple modzakaɖeɖe

Surface Coating:Ami si wotsɔna ƒoa nu kple plastik-ti alo wotsɔ amadede si tsi tre ɖe nu ŋu tsyɔ edzi

Dzesidenu si sɔ pɛpɛpɛ:2-3.

Dɔwɔwɔ ƒe dzoxɔxɔ:(20±5.) ℃

Packaging:Plywood Aɖaka

Ɣeyiɣi si woatsɔ awɔ dɔe .

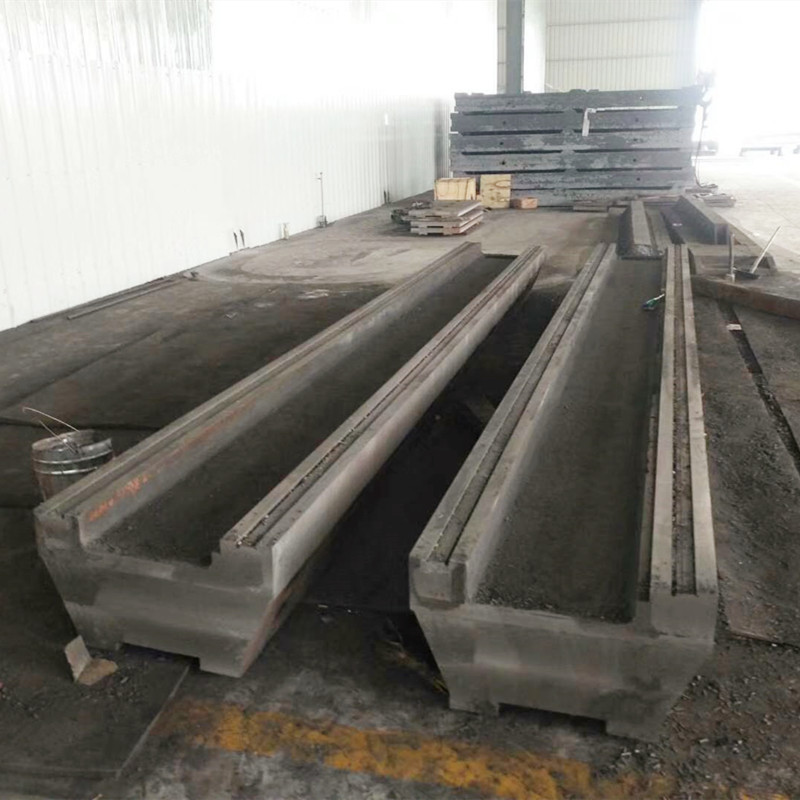

Wogayɔa gayibɔ T-groove anyigba ketekemɔ̃wo ƒe nuwɔna siwo wotsɔ gayibɔ wɔe be: anyigba ketekemɔ, T-Groove anyigba ketekemɔ, anyigba ƒe keklẽ, anyigba groove gayibɔ, gɔmeɖoanyi groove gayibɔ, ɖeka T-groove nuƒolanɔƒe, cast iron anyigba ketekemɔ̃.
Taɖodzinu vevitɔ si le gayibɔ T-groove anyigba ketekemɔe nye be woawɔe ahaƒoe nu ƒu wòazu beam-nuƒolanɔƒe si wotu ɖe dɔwɔnuawo ƒe teƒe siwo woɖo ɖi la dzi. Wozãnɛ koŋ na dɔwɔnu gãwo ƒe kpekpe, dodokpɔ, wo ƒoƒo, kple wo me dzodzro.

Nusiwo wotsɔ wɔe ƒe viɖewo le gayibɔ T-groove anyigba ketekemɔ̃wo ŋu .:
Viɖe siwo le gayibɔ T-groove anyigbadzimɔ̃ siwo wotsɔ gayibɔ wɔe ŋu: To gayibɔ ƒe anyigba ketekemɔ siwo wotsɔ gayibɔ wɔe zazã me la, mehiã be woawɔ wo woazu nuƒolanɔƒe gãwo o, si wɔnɛ be nuwo ƒe asi dzi ɖena kpɔtɔna eye wòxɔa teƒe sue aɖe, si wɔnɛ be ga geɖe nɔa anyi.

Nusi wotsɔ wɔ gayibɔ si wotsɔ gayibɔ wɔe si wotsɔ ƒo anyigbae lae nye gayibɔ si ƒe amadede nye aŋutiɖiɖi si ŋu ŋusẽ le ŋutɔ si nye HT200-250, si me HB170-240 si le dɔ wɔm le la ƒe sesẽme le dɔ wɔm. Wotsɔ annealing si wowɔ kple asi le 600 °C -700 °C alo dzɔdzɔme tsitsi ƒe 2-3 be woaɖe nuteɖeamedzi ememetɔ ɖa keŋkeŋ, kple nyateƒetoto si li ke kple tsitretsitsi nyuie la ƒe ƒoƒo eve.

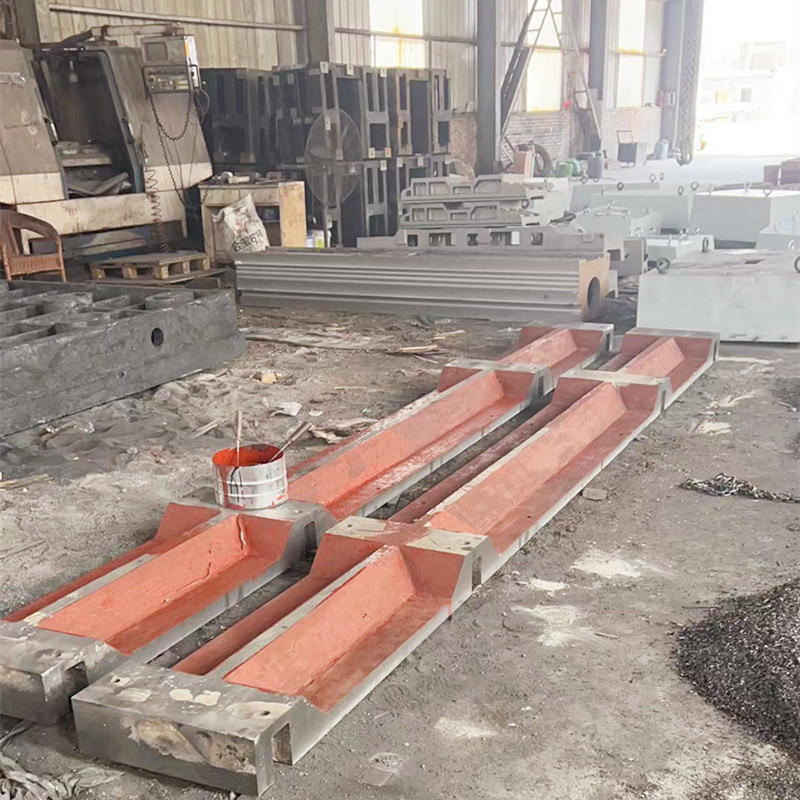

Resin sand casting: alesi mɔfianu ketekemɔwo wɔwɔ nana wokpɔa egbɔ be woli ke .

Precision in linear guide rails dzea egɔme kple adzɔnuwo wɔwɔ ƒe nunya. Storaen zãa resin sand casting deŋgɔ tsɔ wɔa mɔ̃ɖaŋununya sesẽ siwo le fli me siwo naa mɔfianu siwo ƒe liƒo womate ŋu atsɔ asɔ kple wo nɔewo o la na yamenutomeyimɔ̃, ʋuwo, kple dɔwɔƒewo ƒe dɔwɔwɔ sesẽwo. Alesi míaƒe ɖoɖoa kpɔa egbɔ be kakaɖedzi kple dɔwɔwɔ le mɔfiame ketekemɔ ƒomeviwo katã me enye si .:

1. Nuwo ƒe Nu Nyui wɔwɔ: HT200-HT300 Ga si wotsɔ ƒo ƒu na dɔwɔƒewo ƒe didiwo .

resin sand casting dzea egɔme kple tiatia HT200-HT300 grey cast gayibɔ (160–240HB sesẽ), si wotia na .:

Ŋusẽ si da sɔ: 200–300MPA Tensile Strength doa alɔ dɔwɔnu siwo le ʋuʋum tɔn 5–50, si sɔ nyuie na linear guide rail siwo le dɔ wɔm sesĩe.
Nuteɖeamedzi ƒe tsitretsitsi: Nuku ƒe wɔwɔme ɖekae ɖea nuteɖeamedzi ememetɔ dzi kpɔtɔna 40% vs. green sand casting, si ɖea warping dzi kpɔtɔna le 10°C–40°C nutoawo me hena mɔ̃ ƒe mɔfianu ƒe dɔwɔwɔ si mewɔa tɔtrɔ o.

2. Nuwɔwɔ pɛpɛpɛ na geometri siwo sesẽ .

Self-hardening resin sand na mɔfianu ƒomevi siwo gɔme sese sesẽ siwo ƒe mɔɖeɖe ɖe nu ŋu sesĩe la te ŋu .:

CNC-pattern accuracy: T-slot ƒe didimewo (14–36mm ƒe kekeme, 8–20mm goglome) si wokpɔ kple ±0.1mm ƒe nyateƒetoto hena ɖekawɔwɔ si me masɔmasɔ mele o kple automation systems.
Nu vevi ƒe liƒo: ememe nu veviwo léa 0.05mm/m dzɔdzɔe, mɔxexe ɖe nusiwo gblẽ nu kple kakaɖedzi nana be Class 2–3 gbadzaa (≤0.02mm/m na 2000mm ketekemɔ̃wo)—vevie na wɔwɔ ɖe ɖoɖo nu pɛpɛpɛ.

3. Dzoxɔxɔ ƒe atikewɔwɔ na nɔnɔme si nɔa anyi didina & liƒo .

Afɔɖeɖe 3 ƒe ɖoɖo aɖe nana ketekemɔwo ƒe dɔwɔwɔ nyona ɖe edzi .:

Nuteɖeamedzi dzi ɖeɖe kpɔtɔ (550°C/4H): Eɖea 90% ƒe casting stress ɖa be woaxe mɔ ɖe deformation le machining/transport me.
Normalizing: trɔa asi le nuku ƒe wɔwɔme ŋu na 2x didi ƒe dodo ƒe tsitretsitsi le dɔwɔwɔ siwo me wozãa ɣeyiɣi geɖe le (10,000+ agbatsɔtsɔ ƒe tsatsam).

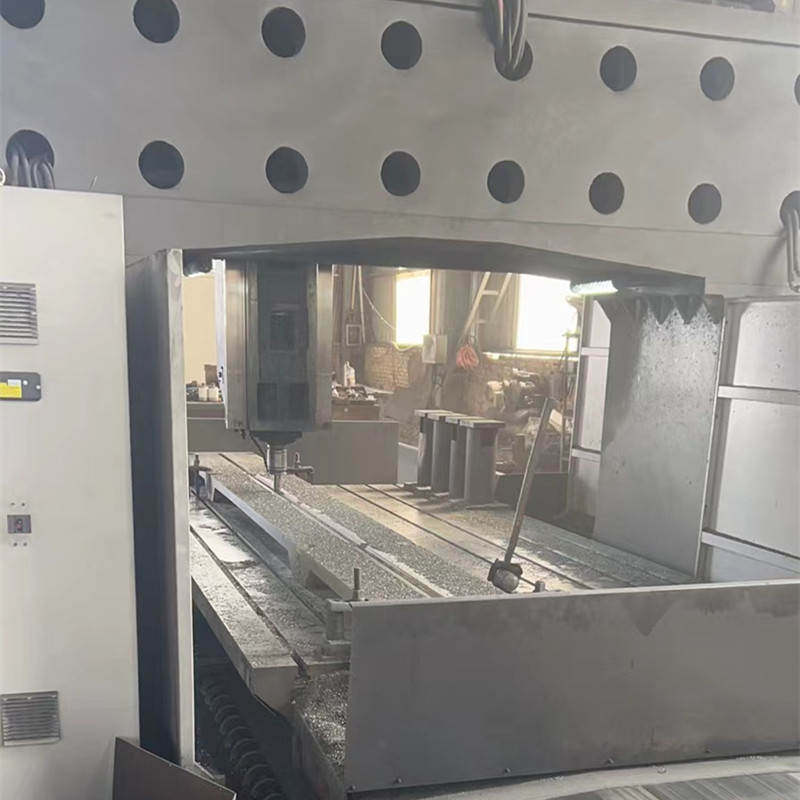

Surface grinding: Ewua RA ≤1.6μm nu hena ʋuʋu bɔbɔe kple ʋuʋudedi sue aɖe le ɖoɖo siwo wowɔna le wo ɖokui si me.

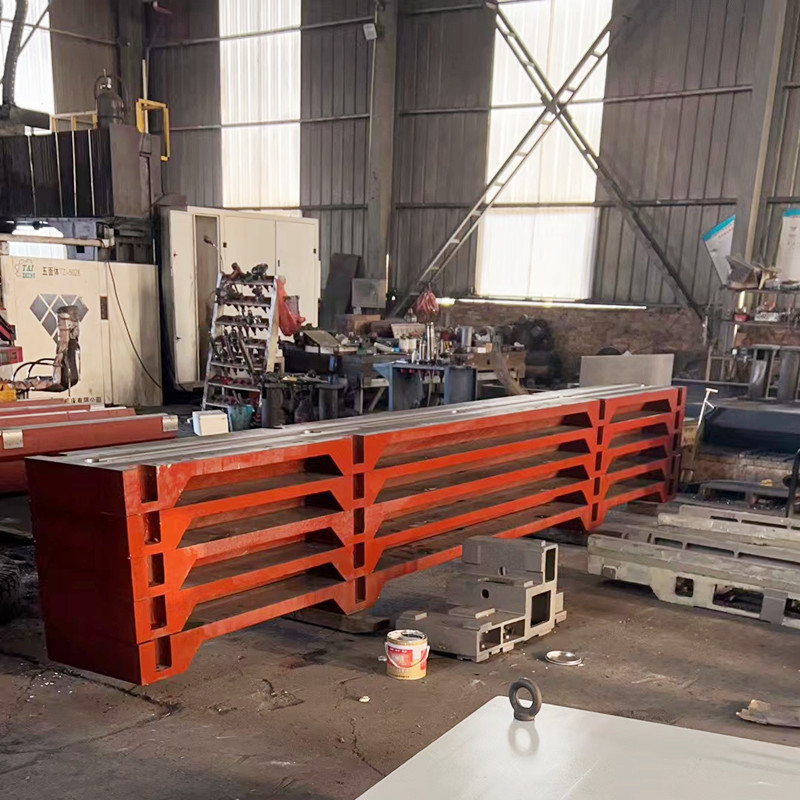

4. Trɔtrɔ si woate ŋu atrɔ asi le & agba ƒe ŋutete .

Storaen trɔna ɖe mɔfia keteke ƒe lolome kple agba ƒe hiahiãwo katã ŋu .:

Standard range: 1500–4000mm ƒe didime, 200–500mm ƒe kekeme na zazã zi geɖe; Custom sizes vaseɖe 6000mm na mɔ̃ siwo lolo akpa.
Aɖaŋu si ŋu wodo ŋusẽe: Nyatakakadzraɖoƒe ƒe xɔtuɖoɖowo dzia agba ƒe ŋutete ɖe edzi 30% (vaseɖe 80 tons/m) si me kpekpeme si wotsɔ kpe ɖe eŋu mele o, si sɔ nyuie na yamenutomeyimɔ̃ si hiã be woawɔ nu pɛpɛpɛ eye wòaʋuʋu.

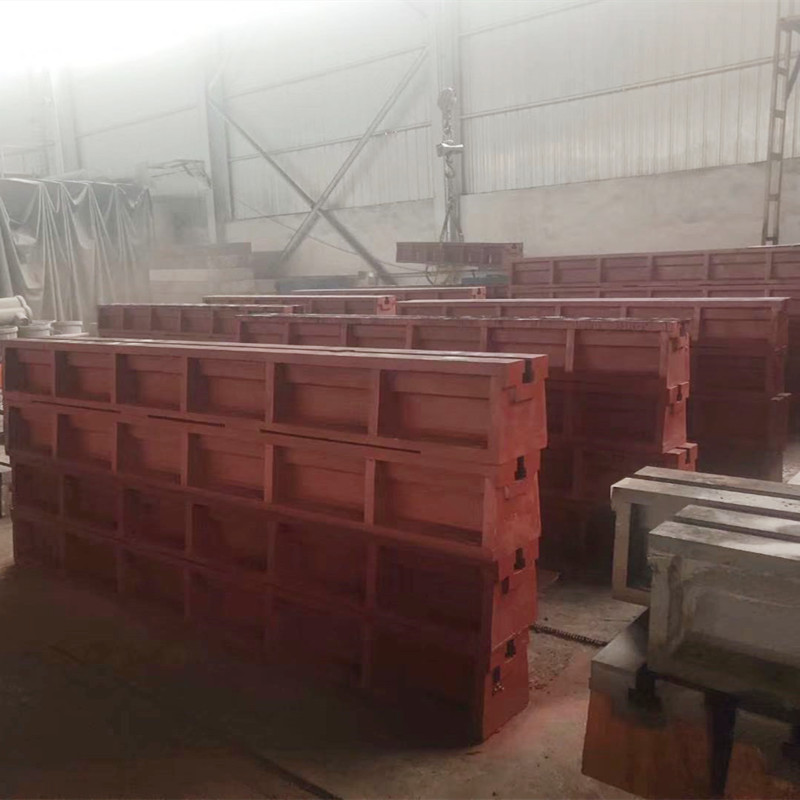

5. Storaen ƒe casting viɖe .

Nuwɔwɔ le mɔ vovovowo nu: Ewɔa mɔfianu ƒomeviwo katã—tso ketekemɔ siwo ƒe kpekpeme le bɔbɔe dzi va ɖo mɔ̃ sesẽ siwo me wowɔa dɔ sesẽ le dzi—kple nyateƒetoto sɔsɔe.
Quality assurance: 3D laser scanning/CMM dodokpɔ kpɔa egbɔ be wowɔ ɖe GB/T 1958-2017/ISO 1101 dzi, si ƒe 1 ƒe mɔɖegbalẽ si wotsɔ tsi tre ɖe didime ƒe ʋuʋu ŋu la da megbe nɛ.
Dɔwɔwɔ nyuie: 500pcs/ŋkeke ŋutete naa standard rails le ŋkeke 7 me, custom solutions le 4–6 kwasiɖawo me—da sɔ kabakaba eye wòli ke.

Wotrɔ asi le mɔfianu siwo le fli me ƒe liƒo ŋu, ke menye le vo me o. Storaen ƒe aŋɔ si wotsɔ ƒoa keae ƒoa nusiwo wotsɔ wɔa nu xɔasiwo, nusiwo wotsɔ wɔa nu pɛpɛpɛ, kple dzoxɔxɔnutsitike sesẽwo nu ƒu be woatsɔ mɔfianu siwo nye linear guide rail siwo le dɔ wɔm sesĩe siwo awɔ ɖe dɔwɔƒewo ƒe didi sesẽtɔwo kekeake dzi la ana. Dzro míaƒe mɔfiala keteke ƒomeviwo me egbea eye nàkpɔ vovototo si wɔwɔ deŋgɔ wɔa le dɔwɔnuwo ƒe dɔwɔwɔ kple agbenɔƒe didi me.

Alesi Guide Rails ɖɔli gayibɔ ƒe anyigba ƒe agbawo hena gazazã dzi ɖeɖe kpɔtɔ

Dekɔnu gayibɔ ƒe anyigba dzi gbadzɛwo xɔ aƒe ɖe dɔwɔƒewo ƒe kpekpe kple ŋkuléle ɖe wo ŋu me, gake woƒe lolome, lolome si woɖo ɖi, kple beléle na wo ƒe gazazã gãwo tsia tre ɖe egbegbe adzɔnuwo wɔwɔ ƒe ŋutete ŋu. Storaen to linear guide rails vɛ abe mɔnu bubu si me gazazã mele o ene, si naa nusiwo sɔ pɛpɛpɛ, asitɔtrɔ le nɔnɔmewo ŋu, kple ga si wozãna ɖe gazazã ŋu katã va ɖoa 30% ne wotsɔe sɔ kple agbalẽ siwo wozãna ɖaa. Alesi míaƒe mɔfiala ketekemɔ ƒomeviwo gbugbɔa dɔwɔƒewo ƒe dɔwɔwɔ ƒe dɔwo gɔmee nye si .:

1. Yame ƒe nɔnɔme si me woɖea teƒe le: 50% Afɔtoƒe dzi ɖeɖe kpɔtɔ .

Ga gbadzɛ siwo wotsɔ gayibɔ wɔe (le kpɔɖeŋu me, 2000x1500mm) hiã anyigba ƒe teƒe gã aɖe kple gɔmeɖoanyi kpekpewo, gake Storaen ƒe mɔfianu siwo le fli me siwo le fli me la naa modular, streamlined solutions:

Vertical & horizontal flexibility: Vertical Guide Rails (le kpɔɖeŋu me, 1500mm ƒe kɔkɔme ƒe kpɔɖeŋuwo) To gliwo alo tsitrenu siwo le tsitrenu dzi, si wɔa 3D kpekpewɔƒewo evɔ wometsɔa anyigba ƒe lolome saa vɔe o—si nye nusi sɔ na robot lãmenugbagbevi siwo le sue alo automated welding stations.
Didime Siwo Woate Ŋu Atrɔ Asi Le: Mɔfiame Ketekemɔ ƒe lolome tso 1000–4000mm, kple splicing si me kuxi aɖeke mele o na dɔwɔwɔ siwo lolo akpa (va ɖo 6000mm), si ɖea nuwo ƒe gbeɖuɖɔ dzi kpɔtɔna 40% tsɔtsɔ sɔ kple gayibɔ gbadzɛ siwo wotsɔ ƒo ƒu ɖe woƒe lolome nu.

2. Gazazã nyuie ƒe nuwɔwɔ pɛpɛpɛ si me woaɖe asi le nu ŋu le o .

Togbɔ be gayibɔ gbadzɛ siwo wotsɔ ƒu gbe ɖo Class 2 ƒe gbadzaƒe (≤0.02mm/m) gbɔ hã la, Storaen ƒe anyigba-nuwuƒe ƒe mɔfiadzesiwo sɔ kple nyateƒetoto sia le 30% ƒe mɔfiame ketekemɔ ƒe asi si bɔbɔ ɖe anyi wu .:

Nuwo ƒe dɔwɔwɔ nyuie: HT200 Cast Iron Construction (180HB Hardness) zãa 25% tsɔ wua nu siwo le anyigba dzi sesĩe esime wòléa 50 tɔn/m ƒe agba ƒe ŋutete ɖe te, dadasɔ kple ganyawo ƒe sesẽ.
Beléle na wo dzi ɖeɖe kpɔtɔ: Anti-corrosion pickling oil finishes (5μm thickness) kpɔa ame ta tso fafanu kple fafa me, si kekea dɔwɔwɔ ƒe agbenɔƒe ɖe enu 2x ne wotsɔe sɔ kple agba siwo womefa o siwo hiã ƒe sia ƒe ƒe gbugbɔgawɔ (si nye $5,000+ ƒe asi na agba gãwo).

3. Trɔtrɔ ɖe nɔnɔmewo ŋu na dɔwɔwɔ ƒe ɖoɖo siwo trɔna .

Fixed cast iron plates ʋlina kple ewɔwɔ ƒe hiahiãwo ƒe tɔtrɔ, gake míaƒe mɔfiala ketekemɔ ƒomeviwo bi ɖe versatility me .:

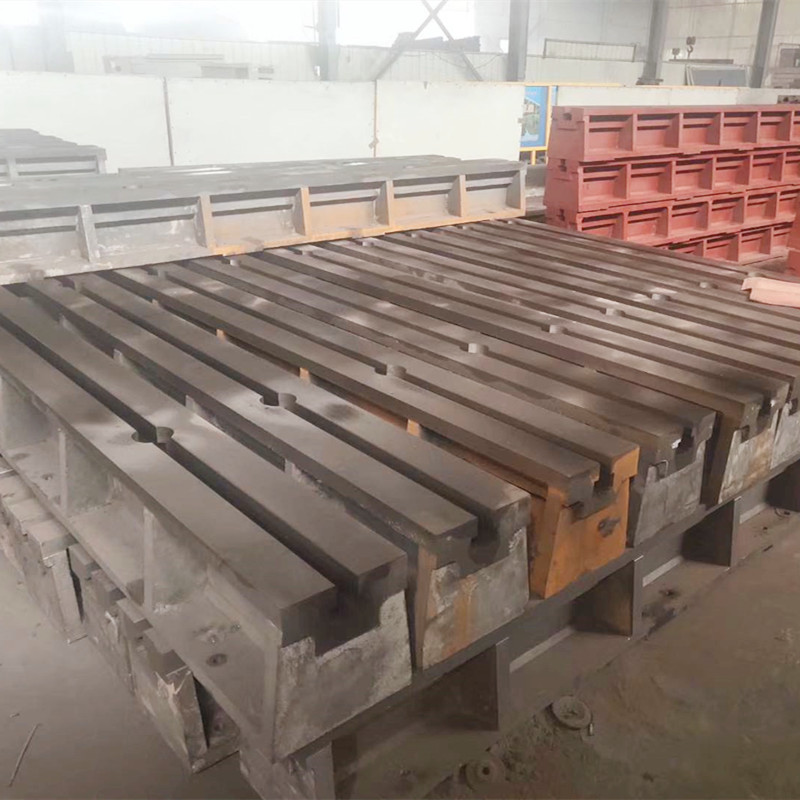

Modular T-Slot Design: 14–36mm Wide Slots (±0.1mm Tolerance) Xɔa clamp siwo woɖena kabakaba, robot alɔwo, alo dzidzenu dɔwɔnuwo, si wɔnɛ be aɖabaƒoƒo 5 ƒe fixture reconfiuration tsɔ wu 2+ hours na plate-based setups.
Dɔ sesẽ wɔwɔ: Reinforced heavy duty linear guide rails (80 tons/m load capacity) doa alɔ dɔwɔnu gãwo abe stamping press components alo aerospace fuselage sections, si xɔ ɖe multi-plate assemblies teƒe kple ketekemɔ ɖeka ƒe ɖoɖo siwo naa alignment nɔa bɔbɔe.

4. Storaen ƒe asixɔxɔ ƒe nyagbɔgblɔ: wu gazazã dzi ɖeɖe kpɔtɔ ko .

Dɔwɔwɔ kabakaba: Rails ship si wowɔ do ŋgɔ na mɔ̃wo ɖoɖo ɖe ɖoɖo nu, lãɖeɖe ƒe ɣeyiɣi dzi ɖeɖe kpɔtɔ 60% ne wotsɔe sɔ kple leveling kple anchoring cast iron plates.
Custom Solutions: Hiã Anti-Magnetic Coatings na Elektrɔnik Nuƒoƒoƒu alo Oversized Guide Rail ƒe lolome na yaƒoƒomɔ̃ wɔwɔ? Míaƒe OEM ƒuƒoƒoa tsɔa mɔ̃ si wotsɔ wɔa mɔfianu siwo wowɔ ɖe ɖoɖo nu la naa le kwasiɖa 4–6 me, eye womexɔa ga home suetɔ kekeake si woaxe ɖe nudɔdɔa ta o.
Quality assurance: Ketekemɔ ɖesiaɖe doa go GB/T 1958-2017 geometric tolerances eye ƒe 1 ƒe mɔɖegbalẽ hã le eme—si ɖea afɔku si le gadede asi na gazazã ƒe mɔnu bubu siwo mewɔa dɔ nyuie o me ɖa.

5. Dɔdamɔnu siwo me gazazã dzi ɖeɖe kpɔtɔ kpena ɖo la ɖoa dɔwɔwɔ gbɔ .

Ʋu ƒe Kpekpe: Tsɔ 3m2 ƒe gayibɔ gbadzɛwo ɖɔ li 2000mm kpekpe-dɔ-dɔdaƒe mɔfianu eve, si dzraa $10,000 ɖo le do ŋgɔ ƒe gazazãwo kple anyigba 20% ƒe anyigba dzi hena mɔ̃a ƒe mɔxenu ƒe ɖoɖowɔwɔ.
Yamenutome Dɔwɔnuwo: Lightweight linear guide rails (30% lighter than equivalent plates) Ðe crane ƒe agba ƒe nudidiwo dzi kpɔtɔ le aʋala ƒe akpawo me dzodzro me, si ɖea ŋusẽzazã ƒe gazazã dzi kpɔtɔna.
General Machining: Portable Guide Rail Types (50–100kg ƒe kpekpeme) Ðea alesi wòhiã be woaɖo agbalẽvi siwo anɔ anyi ɖaa, siwo sɔ nyuie na dɔdzraƒe siwo wogbugbɔ trɔa asi le wo ŋu enuenu la ɖa.

Mègana gayibɔ gbadzɛ siwo wotsɔ ga wɔe siwo do xoxo la naɖe wò gazazã kple anyigba ƒe nɔnɔme ɖa o. Storaen ƒe linear guide rails naa nusi sɔ pɛpɛpɛ si nèhiã la le ga si nèzãna ƒe akpa sue aɖe ko me, kple modularity na etsɔme-proof wò dɔwɔwɔwo. Tso agba kpekpe linear mɔfiame ketekemɔwo na dɔwɔƒe gãwo dzi va ɖo customizable guide rail ƒomeviwo na niche applications, míele asixɔxɔ yeye me le dɔwɔwɔ ƒe kuxiwo gbɔkpɔnuwo me. Dzro míaƒe Hoʋiʋli ƒe Mɔfiame Keteke ƒe Asiwo ƒe Tiatiawɔblɔɖe me egbea eye nàdze gadzadzraɖo gɔme evɔ màtsɔ dɔwɔwɔ asa vɔe o.

•
• Nɔnɔmetata ƒe nuŋɔŋlɔ ƒe numeɖeɖe 1 .
•
•

Specification kple model (didime x kekeme x kɔkɔme) (Unit: mm .)

1500 x 150 x 150 1500 x 200 x 150 1500 x 250 x 300 1500 x 300 x 400

2000 x 200 x 300 2000 x 250 x 300 2000 x 300 x 350 2000 x 350 x 350

2500 x 200 x 300 2500 x 250 x 300 2500 x 300 x 350 2500 x 300 x 400

2750 x 200 x 300 2750 x 250 x 300 2750 x 300 x 350 2750 x 300 x 400

3000 * 300 * 300 3000 * 300 * 350 3000 * 300 * 400 3000 * 320 * 400

3200 * 300 * 300 3200 * 300 * 350 3200 * 300 * 400 3200 * 320 * 400

3500 * 300 * 300 3500 * 300 * 350 3500 * 300 * 400 3500 * 320 * 400

4000 x 300 x 300 4000 x 300 x 350 3500 x 300 x 400 4000 x 320 x 400

4500 x 300 x 350 4500 x 300 x 400 4500 x 320 x 400 4500 x 350 x 400

5000 x 300 x 400 5000 x 350 x 400 5000 x 400 x 450

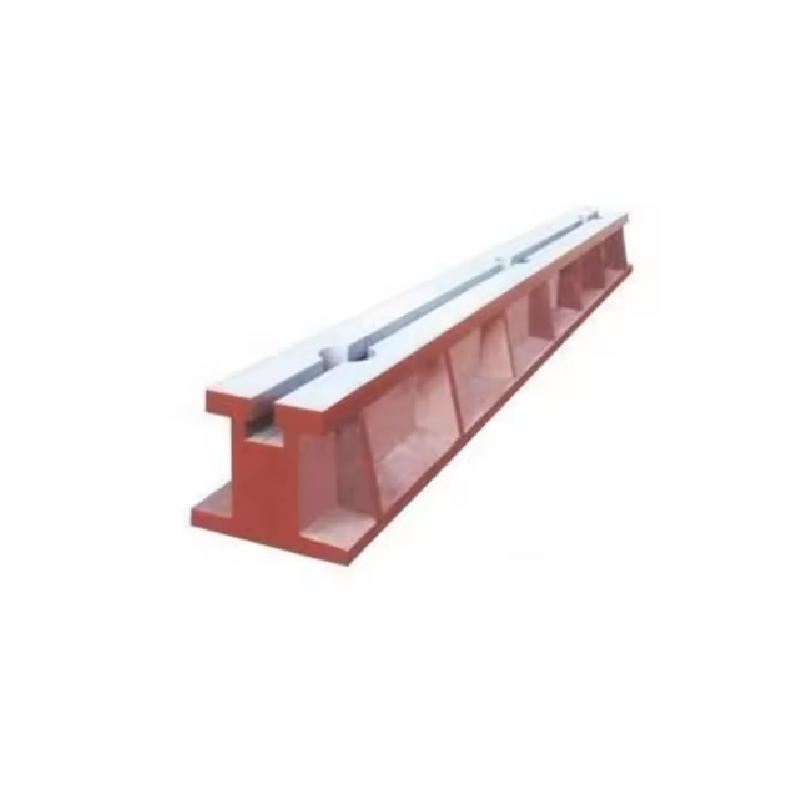

Mɔ̃ɖaŋununya ƒe nɔnɔmetata si ku ɖe gayibɔ T-slot anyigba mɔfiame ketekemɔ:
